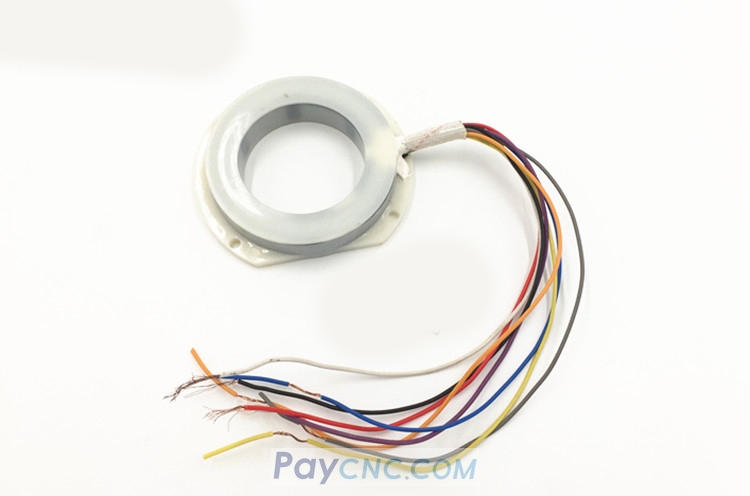

8 Position Turret Sensor Cable Connection
8 Position Turret User:
Hello Paycnc,
I bought from you the 8 position encoder.
You sent me this in the previous email:
"Yes, we have 8 position too, you can place order in below link.
https://www.paycnc.com/83o70i47c-8-position-no-plug_p12455.html
I want to know if you can send me the datasheet of this encoder... I need to know how to connect, what color of cable is for voltage, ground / common, signals.
Thank you for your help.
CNCmakers Support:
Red 24V
yellow 0V
white 1
blue 2
purple 3
orange 4
gray 5
brown 6
green 7
pink 8
