Basic Knowledge of NC macro program
1. The H code of FANUC—0M macro program
Macro standard format: G65 Hm P#i Q#j R#k





2. The format of FANUC—18M macro program

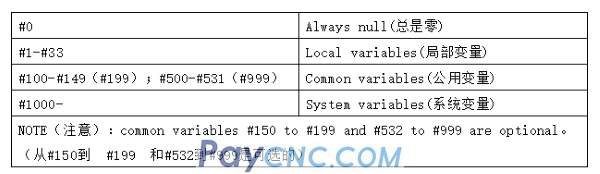

1. Types of variables:





2. Non-modal call macro program:
The standard format of the program: G65 P (macro program number) L (number of repetitions)
Note: The standard format of G65 must be rewritten every time it is called, and it will be cancelled automatically after use.
3. Modal call macro program:
The standard format of the program: G66 P (macro program number) L (number of repetitions)
Note: Input parameter value directly without specifying G66.
4. About the parameter assignment in G65 and G66

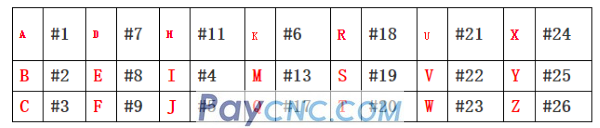

⑴. Correspondence between the address of parameter assignment Ⅰ and the variable number:





⑵. Correspondence between the address of parameter assignment Ⅱ and the variable number:



5. Regarding the arithmetic and logical operations in G65 and G66:






6. The modal call of G67 macro program cancels the macro program.
7. The macro program can be called in the format of G××  :
Description: ①The program number uses O9010~O9019;
②Set the parameter corresponding to the program number to the value of G code;
③The calling form is: G (parameter setting value) .
The main body number of the macro program and the corresponding parameter number:

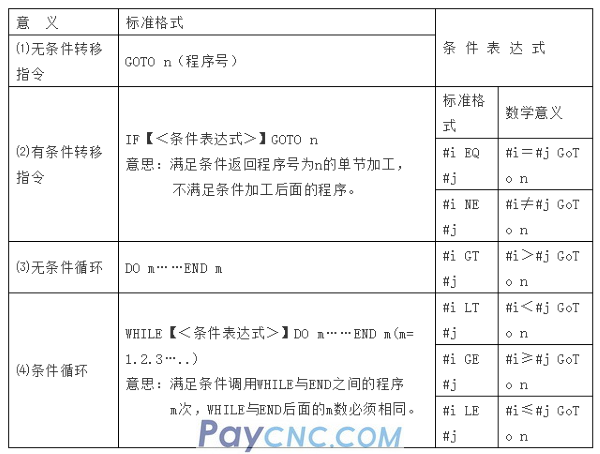

8. Conditional transfer instructions:








3. The format of the SIEMENS macro program
1. Calculate the parameter R:
R0—R99 —— can be used freely;
R100R249 ——Machining cycle transfer parameters;
R250—R299—Internal calculation parameters used for processing cycle transmission.
Calculation: Follow the usual rules of mathematical operations, priority in parentheses, priority in multiplication and division, and addition and subtraction.
For example: R15=SQRT(R1*R1+R2*R2); meaning: R15=(R1^2+R2^2)^1/2;
N10 Z=R3 means Z assignment; the rest is the same as 18M.
2. Conditional jump:
⑴. Standard format: IF condition GoToF Label jump forward
IF condition GoToB Label jump backward

Among them: label (Label): the two characters starting with 2-8 letters or numbers must be letters or underscores.
The jump target identifier must be followed by a colon.

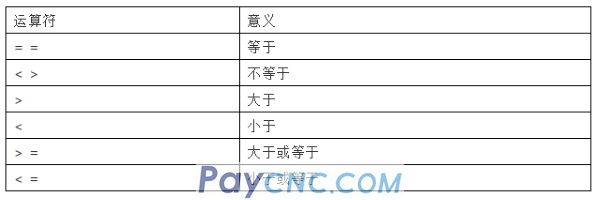

⑵. Comparison operation:




3. Arithmetic:

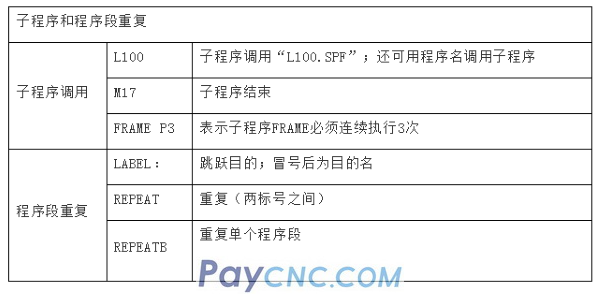

Fourth, the format of the SIEMENS programming language
