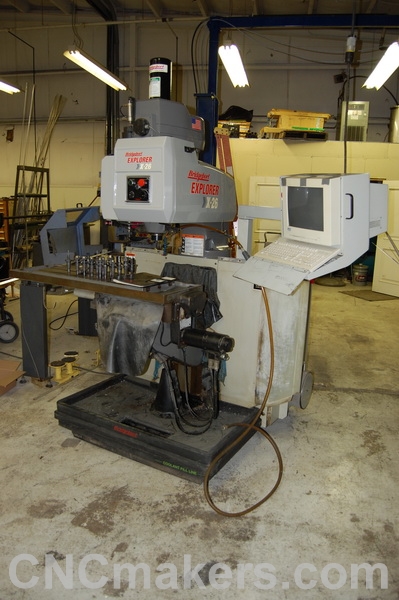

Bridgport X26 Explorer vertical milling machine
The current Spindle is 3 hp =2.2KW
The current servo motors are 26.13 LB-IN = 3Nm
3250 RPM 90 VDC 60 A
Following you may find the CNC retrofit package for Bridgport X26 Explorer vertical milling machine.
CNC controller for milling machine with 3 axes simultaneously plus 1 spindle
1 unit
Servo Motor+driver+cables+connectors for X and Y axis,1KW,4Nm,3000rpm,5.0A,110mm support
2 sets
Servo Motor+BRAKE+driver+cables+connectors for Z axis,1KW,4Nm,3000rpm,5.0A,110mm support
1 set
AC servo spindle motor+driver+cables+connectors, 2.2KW, max. 7000rpm
1 set
All cables, English user manuals and software 1set
