CNC WARN 6741 6742

lathes MTC-8 with GSK980TDi User:
Dear CNCmakers Support team

We still advancing with retrofit of one our lathes MTC-8

 Right now, we  are trying to setting the zero point or “home position” on Z, and X axes.

Suddenly this alerts appears on screen  but we can´t find procedure to setting some data or parameter (may be direction of axes or method to trip the signal for zero)

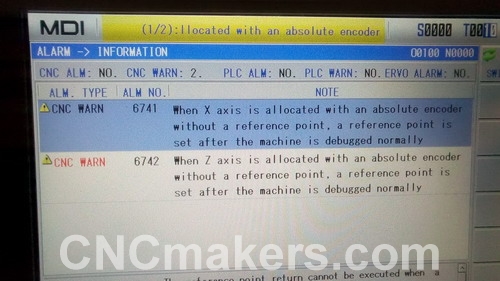

CNC WARN  6741
When X axis is allocated with an absolute encoder without a reference point, a reference point is set after the machine is debugged normally.

CNC WARN  6742
When Z axis is allocated with an absolute encoder without a reference point, a reference point is set after the machine is debugged normally.

The troubleshooting information on handbooks seems not clear for us.

Could you give us support?

CNCmakers Support:
1- Input level 2 parameter and turn on the parameter switch.
2- Please press the "Position" key for several time, until find attached page.

3- Please re-set the reference point again.
4- Then set the Data parameter No.249 as 2000.
