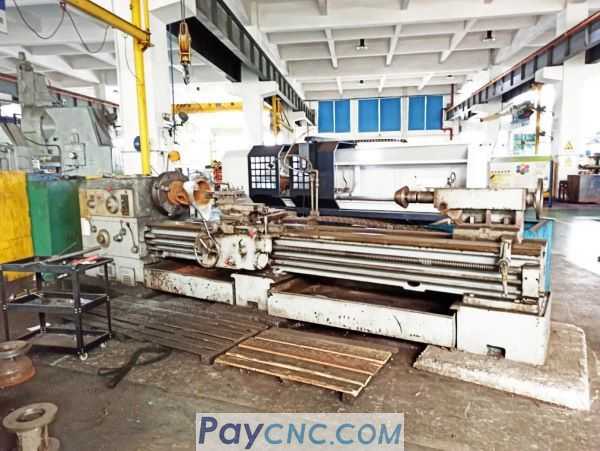

Existing large lathes are all ordinary machine tools with low processing efficiency and need to be replaced with CNC lathes;

Compared with the new CNC machine, the old machine transformation is one-third of the price of the new machine;
It is planned to gradually complete the numerical control transformation of the existing equipment in the factory to improve production efficiency.





solution


The machine tool grinding rail is pasted with plastic and scraped to restore the geometric accuracy;
X/Z axis is changed to ball screw feed mechanism;
Install a four-station electric tool post;
Install hydraulic solenoid valve to control spindle forward and reverse rotation and brake;

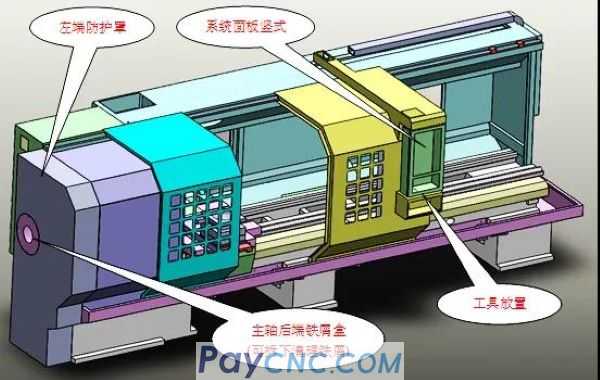

Redesign and install the whole machine protection;
Configure GSK980TDi CNC system.





Application effect

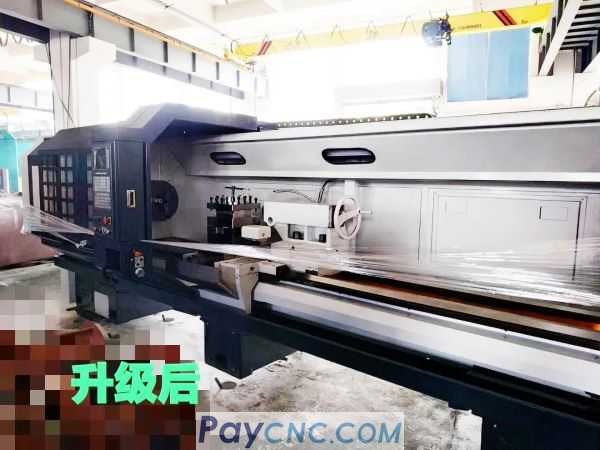

The machine tool reaches the accuracy inspection standard of the new machine after the transformation, and meets the needs of parts processing;
The use of CNC programming reduces the difficulty of operation and improves production efficiency;
One person operates multiple machine tools, which reduces production costs and increases product output.
