LED monitor window


It can monitor various operating conditions and modify and manage parameters

Parameter number and parameter value increase
Parameter number and parameter value decrease
Cyclically move the modified data bit
Return to the previous operation, or cancel the operation
Enter the next level of operation, or confirm the operation




CN2 (DB25 hole socket)
Motor encoder feedback input interface
Support increased volume and absolute encoder signal access




CN1 (DB25 targeted socket)
Servo drive unit control signal interface
Connect CNC system and other position machines





When the CHARGE indicator light is on, the internal DC bus has high voltage, and it is not allowed to disassemble or install the power line, motor line, and brake resistance line.

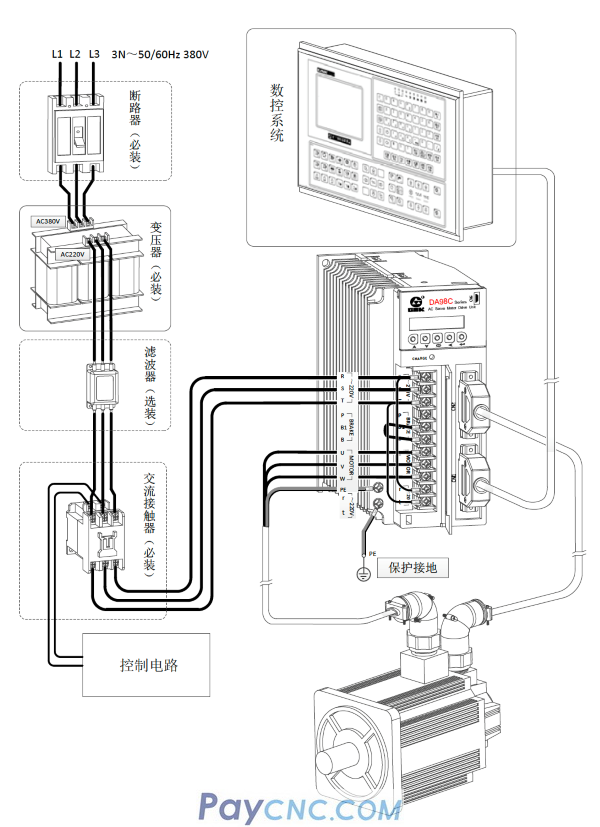

Main circuit power line terminal
