Decrypt macro program by making PLC ladder

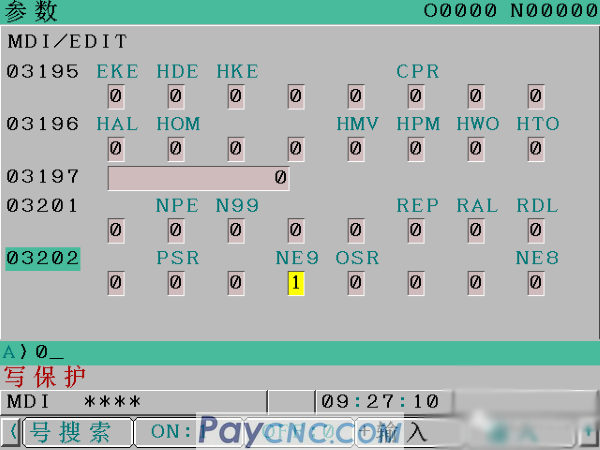

When opening the macro program between FANUC 9000-9999, it is often unable to open, because 3202.4 NE9 is 1, as shown in the figure below:

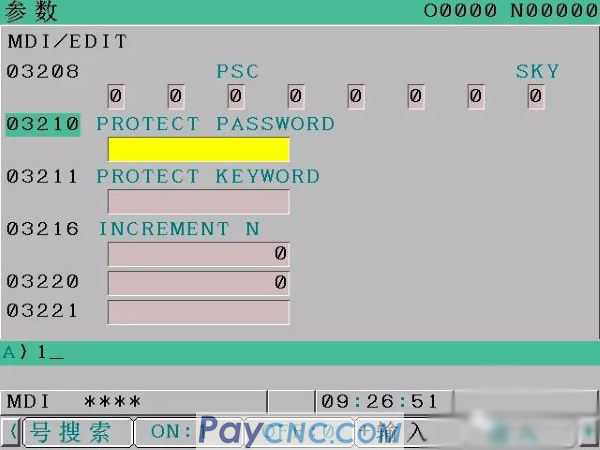

Sometimes this value cannot be modified, it is because 3210 and 3211, the password is set as shown in the figure below:

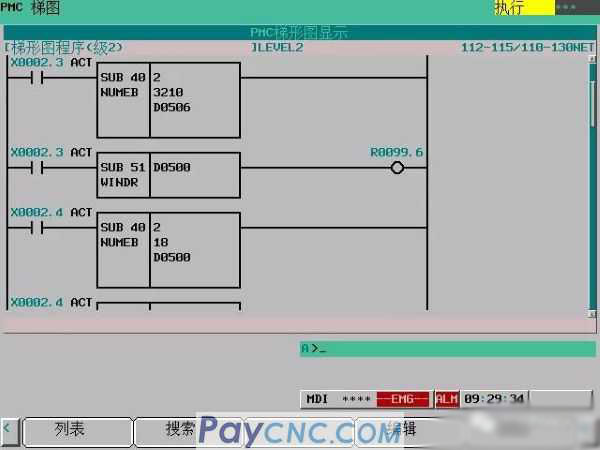

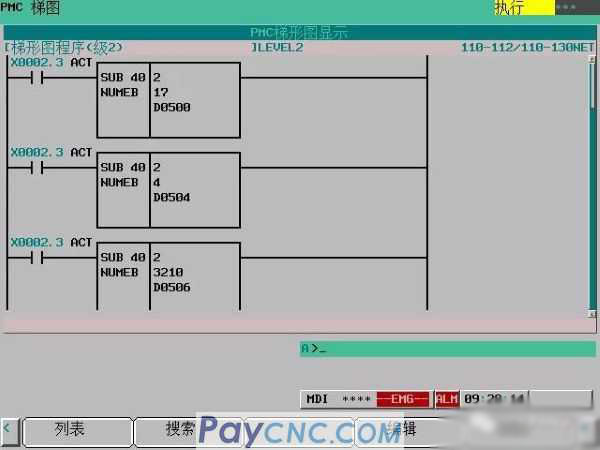

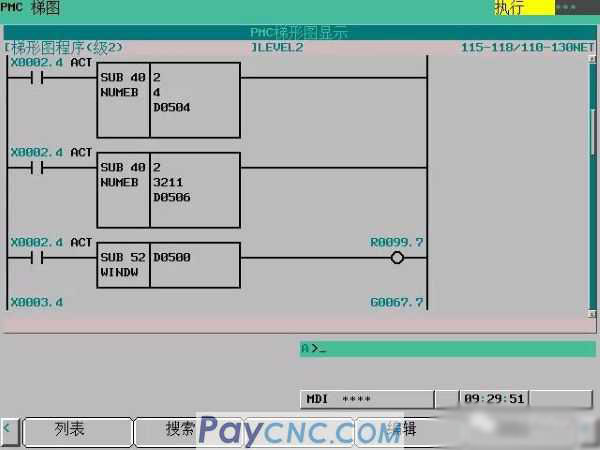

How to solve the password? We use ladder diagram to decrypt, the ladder diagram is as follows:
Can you understand the above ladder diagram? If you don’t understand, please refer to the FANUC Ladder Diagram Editing Manual
Sometimes this value cannot be modified, it is because 3210 and 3211, the password is set as shown in the figure below:
How to solve the password? We use ladder diagram to decrypt, the ladder diagram is as follows:
Can you understand the above ladder diagram? If you don’t understand, please refer to the FANUC Ladder Diagram Editing Manual
