GSK 218MC
technical parameter
|
各轴相关参数 |
移动距离 |
移动轴扭矩 |
定位精度 |
丝杠螺距 |
电机型号 |
驱动 |
快移速度 |
|
X轴 |
350mm |
15N.m |
0.001mm |
6mm |
130SJT-M150D |
GS2050 |
4000mm/min |
|
Y轴 |
360度 |
10N.m |
0.001mm |
/ |
130SJT-M100D |
GS2050 |
3000mm/min |
|
Z轴 |
500mm |
15N.m |
0.001mm |
6mm |
130SJT-M150D |
GS2050 |
4000mm/min |

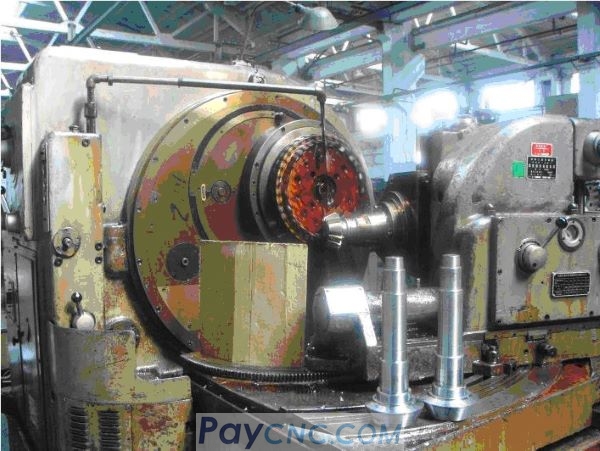

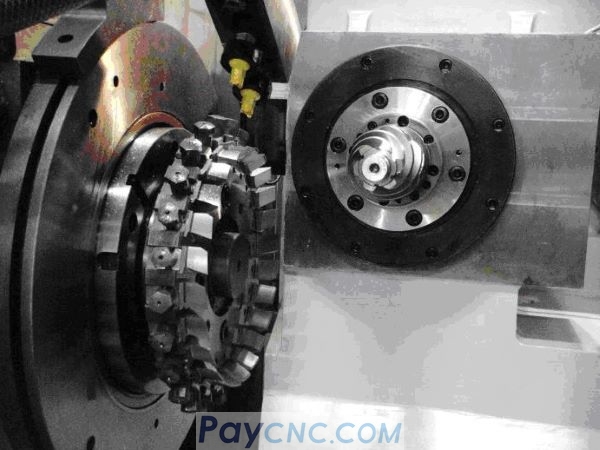

Application effect
The five CNC axes are: B—Roller spindle rotary motion, C—Workbench rotary motion, X—radial feed motion, Y—tangential feed motion, Z—axial feed motion;
◇ Various types of gears such as spur gears, helical teeth, taper helical teeth, taper teeth, drum gears, chamfering gears, and worm gears can be realized;
◇ A variety of gear machining such as milling and grooving can be realized;
Gear machining accuracy levels up to 4 levels.
