GSK 980MDa
The main technical parameters
各轴相关参数 |
移动距离 |
定位精度 |
电机型号 |
驱动 |
快移速度 |
X轴 |
2500mm |
0.01mm |
130SJT-M150D |
DA98A |
30m/min |
Y轴 |
1200mm |
0.01mm |
110SJT-M060D |
DA98A |
3m/min |
Z轴 |
1200mm |
0.01mm |
130SJT-M100D |
DA98A |
30m/min |
4th |
0-180度 |
0.01度 |
110SJT-M060D |
DA98A |
20m/min |
5th |
0-180度 |
0.01度 |
130SJT-M100D |
DA98A |
20m/min |

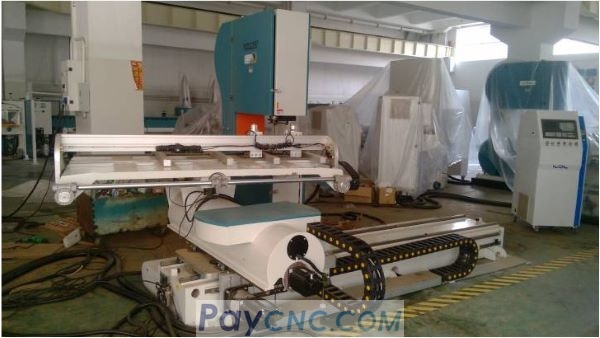

Application effect
◇ The system has a synchronous axis function, which can control the synchronous movement of two axes with one axis pulse;
◇ The Z axis is parallel to the Y axis, which increases the machine tool stroke and can complete the processing of larger workpieces;

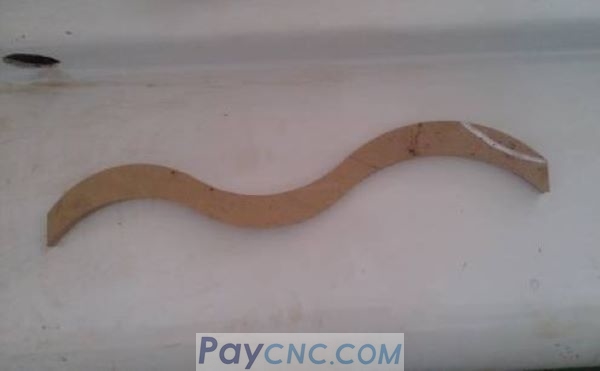

◇ It can process straight and large angle arc curves.
