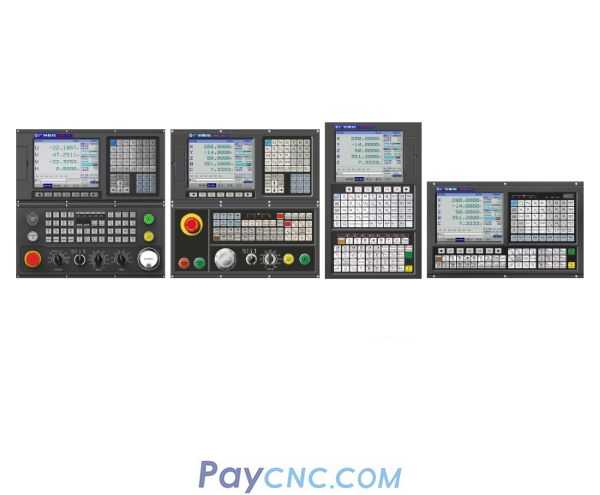

GSK 980TC3 CNC Alarm List
Paycnc.com - PAY for CNC components
GSK 980TC3 CNC Alarm List


Alarm No. Content Remark
0000 Parameter for cutting off power once is modified
0001 File open fail
0002 Data input overflow
0003 Program number already in use
0004 There is no address but figure or character "-”at the beginning of the block.
Modity the program

0005 There is no appropriate data but another address or EOB code behind the
address. Modify the program

0006 Sign ""”input is wrong (One or more "-”signs are input behind the address
where negative sign can not be used). Modify the program

0007 Decimal point"." input is wrong (One or more "." signs are input in the address
where the sign can not be used). Modifty the program

0008 The program file is too large. Please use CNC to transmit it
0009 llegal address input. Modity the program.
0010 Have used the unusable G doe or have commanded the G code which has no
the function. Modify the program

0011 Feedrate is not specified or it is wrong in cutting feed. Modify the program
0012 Disk space is not enough. Setup or add file is not alowed
0013 The program files are up to the upper limit. New programs can not be setup
0015 Exceed the number of simultaneously controlled axes
0016 Current pitch compensation beyond range
0017 No authority to modify
0018 Dummy variable and local variable are not allowed to modify. G10 only to
modity parameter of user grade

0020  In circular interpolation (G02 or G03), the distance between the Start point and
the circle center is not equal to the distance between the end point and the
circle center. The value beyond the one specified by parameter214

0021 In circular interpolation, axes which are not in the selected planes(G17, G18,
G19) are specified. Modify the program.

0022 In circular interpolation, R (radius),1, J and k (distance from the start pointto
the center) are not be specified

0023 In circular interpolation, I, J, K and R are specified together
0026 Unsupported file format. It is too large or with above 1024 bytes
0028 In plane selection codes, two or more axes are specified at the same direction.
Modify the program

0031 When G10 sets an offset amount, a workpiece coordinate system and an
extemal workpiece coordinate system, P value is too big or is not specified

0032 When G10 sets the offset amount or the system variable writes an offset
amount, the offset amount is too big or is not specifed. Modify the program

0033 The intersecting point of offset C or chamfer is not confrmed. Modify the
program

0034 Set-up or offset cancel are not allowed in circular command. Modify the
program

0036 In tool compensation mode, have commanded the skip cutting (G31)。
Modity the program

309

The plane selected by G17, G18 or G19 is changed in tool compensation C.
0037
Modify the program
0038 In tool compensation C, overcut appears because the arc start point or end
pont is consistent with the arc center. Modify the program

0039 Tool nose positioning error in tool compensation C
0040 Cannot convert the workpiece coordinate system in tool compensation C.
Cancel the tool compensation before changing the workpiece coordinate

0041 Interference occurs in tool compensation C leads overcutting. Modify the
program

0042 Ten blocks with stop tool code are specified in tool compensation mode.
Modify the program

0043 No authority. Change it in password page
0044 In canned cycle, one of codes in G27, G28, G29, G30 is specified. Modify the
program

0045 In canned cycle G73/G83, cutting depth (Q) is not specified or it is 0. Modify
the program

0046 In 2nd, 3rd, 4th| reference retum codes, codes besides P2, P3 and P4 is
specified

0050 Move it when changing canned cycle mode
0051 Have specified a mistaken movement operation or movement distance in a
block following the cornering or chamfering. Modify the program

0053 Wrong command format for rounding or chamfering. Modity the program
0055 Chamfering movement failed
0056 M99 shall not in the same block with macro code G65. Modity the program
0057 File input filed. Cut off the power and resetit
0058 In block of rounding or chamfering, specified axis is not in the selected plane.
Modify the program

0059 Program number is not found in external program retrieving or it is edited in
background. Check program number or external signal, or stop background
editting

0060 Specified sequence number is not found in retrieving. Check sequence
number

0061 The 15t axis is not on the reference point
0062 The 2nd axis is not on the reference paint
0063 The 3u axis is not on the reference point
0064 The 4"axis is not on the reference point
0065 The 5" axis is not on the reference point
0066 Cancel canned cycle mode before inputting parameter (G10)
0067 G10 does not support the set format
0068 Parameter switch is not switched on
0069 Udisk operation page should be closed when machining
0070 Insufficient memory. Delete unneeded programs and try it again
0071 Have not found the required searched address or have not foundthe specified
program number's program in the program search. Check the data

0072 Stored programs exceed 400. Delete unnecessary programs
0073 Program number already in use. Change the program number or delete
unneeded program

0074 Program number beyond the range 1-9999). Change the program number
310

0075 To register a protected program number
0076 Address P (program name) is not specified in block M98. Modifty the program
0077 Program nesting exceed 5 layers
0078 In blocks M98, G65, program name specified by address Pis not found or
macro program called by M06 does not exist

0079 CNC expires the using date. Please contact the supplier
0080 Input data is wrong, Max. speed is smaller than Min. speed or Min. speedis
bigger than Max. speed

0081 Subprogram can not be called. Modify the program
0084 Overtime or short circuit occurs in key
0085 Overflow occurs when data is transmitted to memory by series port. Baud rate
setting or IO equipment is wrong

0086 Planes can not be shifted in canned cycle mode
0087 Alarm NO .0087-0091 are for reference point retum unfinished (starting point
of reference return is too close to the reference point or the speed is too slow).

0092 G27(check for reference return) code can not return to the reference point
0093 Motor model error
0098 Afer power-on or emergency stop, when the program with G28, program
restarts without executing reference return

0100 On parameter (setting) screen, PWE (parameter input is active)is setto 1.
Restart CNC after setting itto0.

0101 Memory data disordered after power off, please ensure correct location
0102 Driver motor does not match CNC
0103 Bus communication error. Please check reliability of the cable
0104 Machine zero point setting error
0105 Time-out error while data is being fetched
0106 Drive unit is not consistent with gear ratio of servo parameter
0107 Drive unit parameter is not consistent with servo unit parameter
0108 Please insert U-disk
0110 Position data exceeds the allowed range. Please reset
0111 Calculated result exceeds the allowed range (-1047 to -1029, 0 and 102 to
1047 )

0112 Zero (including tan900) is specified as a divisor
0113 Unusable functional code is specified in user macro program. Modity the
program

0114 G39 format error. Modify the program
0115 Variable value can not be specified. O, N can not be specifed as variablesin
user macro program

0116 A variable is on the left of the assignment statement, while value assignment
to it is not allowed. Modify the program

0117 G10 online modification is not supported by this parameter. Please modify the
program

0118 Nest exceeds the upper limit (5). Modify the program
0119 Codes MOO M01 ,MO2,M3O,M98 M99,.M06 can not in a same block with other
M codes

0120 Part of setting is restored
311
0121 Machine coordinates and encoder feedback values exceed setting value of
error

0122 Called nests of macro program exceed 5 layers. Modify the program
0124 Program end ilelally,l without M30, M02, M99 or end sign. Modify the program
0125 Macro program format error. Modify the program
0126 Program cycle filure. Modity the program
0127 NC coexists with user macro code statement. Modify the program
0128 Sequence number in branch code is not at the range 0-99999, or the number
is not found. Modify the program

0129 The address of argument assignment. Modify the program
0130 PLC axis control code is input to the axis controlled by CNC, or opposite.
Modify the program

0131 5 or more external alarm signals occur. Check the ladder diagram
0132 The alarm of the external alarm signal does not exist. Check PLC
0133 The system does not support axis code. Modify the program
0135 The index angle of index table is not an ange unit's multiple. Modify the
program

0136 In index table's indexing, it with B axis commands another axis. Modify the
program

0137 Sequence number to be transferred by skip code is in loop body. Modifythe
program

0138 Cycle statement is wrong or skip code enters loop body. Modify the program
0139 PLC axis change disabled. Modifty the program
0140 Sequence number does not exist
0142 The propotion scaling override exceeding 1-999999 is commanded. Correct
the proportion scaling setting

0145 G28 is commanded when a reference point is not established
0148 The automatic corer deceleration speed exceeds the the judgement angle
range's setting value. Modify the parameter

0150 Mistaken modal command
0151 Blocks specified by P and Q have commanded the unusable commands in the
compound fixed cycle

0160 Arc programming only by R in polar system
0161 Reference point, plane selection or direction-related codes can not be
executed in polar coordinate mode

0165 Please specify revolution, scaling or G10 codes in a single block
0166 No axis specified in reference return
0167 Intermediate point coordinate too large
0168 The min. dwell time at the hole bottom should be shorter than the max. dwell
time

0170 Tool radius compensation is not cancelled while entering or exiting
subprogram

0172 Pis not an integer or less than 0 in a block clling subprogram
0173 Subprogram call should be less than 9999
0175 Canned cycle can only be executedin G17 plane
0176 Spindle speed is not specifed before rigid tapping


0177 Spindle orientation is not supported by 10 control in G76 code. Modify the
program or parameter

0178 Spindle speed is not specified before the canned cycle starts
0181 Illegal M code
0182 The spindle speed is too big or small
0183 llegal T code
0184 The selected too exceed its range
0189 Uis too small, U should bigger than or equal to tool radius
0190 V is too small or it is undefined. V should be bigger than 0
0191 W is too small or it is undefined. W should be bigger than0
0192 Q is too small or it is undefined. Q should be bigger than 0
0193 I is undefined oritis 0
0194 J is undefinedor itis 0
0195 D is undefined oritis 0
0198 In constant surface cutting speed control, specified axis error (see parameter
No.254)

0199 Macro code modification program is not defined
0200 In rigid tapping, ilgal S code
0204 M29 should be specified in G80 mode. Modify the program
0206 Plane shifting is specified in rigid tapping. Modify the program
0208 This code can not be executed in G10 mode. Please cancel G10 mode first
0210 The program restart file name is not consistent. Please select a correct file
name

0212 ChamferorRis specified, orother axis is specified in plane. Modify the
program

0213 Tool changing macro program does not support G31 skip. Modify the program
0214 Tool changing macro program does not support skip operation
0215 Tool changing macro program does not support modifying coordinate system
and tool compensation dynamically

0219 MO6 Tool magazine is not used (parameter is not opened). Tool changing code
can not be used

0220 Metric/inch switching is not supported by scaling, revolution and polar
coordinate mode

0221 Metric/inch switching is not supported by tool changing macro program
0224 Reference return is not performed before auto run started
0231 There are following errors in the parameter input's specified format error:
1)N or R is not input
2) Parameter number is not defined
3)Address P is not defined in bit parameter input L50
4)N, P, Rexceed the range

0232 3 or more axes are specifed as helical interpolation axis
0233 Device connected to RS-232-C is being used
0235 Specified record end sign (%)
0236 Parameter setting of program restart is wrong

0237 The command's decimal point which must be specified is not specifed
0238 The same address in one block exists many times or two or more G codesin
the same group are in one block

0239 An ilegal G code is specified in pre-reading control mode. In pre-reading
control mode, dividing spindle is specified, max. cutting feeding parameteris
set to 0 and interpolation pro-acceleration/deceleration parameteris setto0.
Set the parameter correctly

0241 MPG pulse is abnormal
0242 Bus connection error
0250 Axis name repeated, please modify parameter NO.175~179
0251 Emergency stop alarm, perform zero return again after canceling the alarm
0252 Program ends ilally (CNC transmission speed is low, please reduce
feedrate)

0261 Pulse code of DSP interpolation axis is too big. Perform zero return again after
reset

0262 DSP is not started. Please power on again
0263 DSP parameter setting error
0264 DSP alarm. Data is too big
0265 DSP alarm. The bus can not be connected or bus initialization failure
0266 Speed of DSP interpolation axis exceeds 200MMIN. Perform zero return
again after reset

0267 DSP initial sign (5555) is abnormal. Perform zero return again after reset
0268 DSP pulse output volume per revolution is too big. Perform zero return again
after reset

0269 DSP internal alarm. Perform zero return again after reset
0270 Length of DSP equally distributed interpolation point is too small
0271 DSP received interpolation data is too small. Perform zero return again after
reset

0272 DSP received unditinguishable G code
0273 DSP hardware data interchange is abnormal (codes)
0274 DSP hardware data interchange is abnormal (data)
0275 In high-speed mode, interpolation multipleis 0
0280 Perform axes zero return before using tool setting function
0281 Switch to [SET] [Halving] interface before using tool setting function
0282 Please check whether tosetting gauge is installed or parameter 1.6 is set
0283 Z axis exceeds safety position,please check tosetting gauge or tool length
setting_

0286 Automatic tool length measurement is wrong. Please measure it again
0401 The drive alarm 01: the servo motor speed exceeds its setting value
0402 The drive alarm 02: the main circuit's power supply voltage is too high
0403 The drive alarm 03: the main circuit's power supply voltage is too low
0404 The drive alarm 04: the numerical value of position deviation counter exceeds
its setting value

0405 The drive alarm 05: the motor's temperature is too high
0406 The drive alarm 06: the speed regulator satyrates for long time
314

0407 The drive alarm 07: CCw, cW drive inhibiting input are OFF
0408 The drive alarm 08: the numerical value's absolute value of position deviation
counter exceeds 230

0409 The drive alarm 09: the encoder signal is mistaken
0410 The drive alarm 10: control power supply +15V is low
0411 The drive alam 11: IPM faults
0412 The drive alarm 12: the motor's current is too big
0413 The drive alarm 13: the servo driver and motor are overload(instantaneous
overheat)

0414 The drive alarm 14: the braking circuit fault
0415 The drive alarm 15: encoder counter fault
0420 The drive alarm 20: EEPROM error
0430 The drive alarm 30: encoder z pulse eror
0431 The drive alarm 31: encoder UVW signal error or it does not match encoder
0432 The drive alarm 32: UVW with all high level or with all low level
0433 The drive alarm 33: communication interrupted
0434 The drive alarm 34: encoder speed is abnormal
0435 The drive alarm 35: encoder state is abnormal
0436 The drive alarm 36: encoder counter is abnormal
0437 The drive alarm 37: single circle number of encoder overflow
0438 The drive alarm 38: encoder counter overflow
0439 The drive alarm 39: encoder battery alarm
0440 The drive alarm 40: encoder battery's power shortage
0441 The drive alarm41: motor model dismatched
0442 The drive alarm 42: absolute position data abnormal alarm
0443 The drive alarm 43: encoder EPPROM check alarm
0449 Ethernet initialization failure. Please check hardware
0450 Drive unit is disconnected. Please check whether connection of hardwareis
correct

0451 The 15t axis driver alarm
0452 The 2nd axis driver alarm
0453 The 3'd axis driver alarm
0454 The 4 axis driver alarm
0455 The 5h axis driver alarm
0456 Spindle driver alam
0460 Exceed the machining cycle processedbyG71, G72, G73, G76, G90, G92,
_G94

0466 The path is non-monotonous: X direction
0467 The path is non-monotonous: Z direction
0500  The 15 axis soft limit - direction overtravel:(manual or MPG +direction
movement release).

0501 The 15 axis soft limit - direction overtravel:(manual or MPG -direction
  movement release).
0502 The 2 axis soft limit- direction overtravel:(manual or MPG +direction
movement release).

0503 The 2md axis soft limit - direction overtravel:(manual or MPG -direction
movement release).

0504 The 3daxissoftlimit- direction overtravel:(manual or MPG +direction
movement release).

0505 The3"axissoft limit- direction overtravel:(manual or MPG -direction
movement release).

0506 The 4”axis soft limit - direction overtravel:(manual or MPG direction
movement release).

0507 The 4h axis soft limit - direction overtravel:(manual or MPG -direction
movement release).

0508 The 5" axis soft limit 一direction overtravel:(manual or MPG direction
movement release).

0509 The 5m axis soft limit 一direction overtravel:(manual or MPG -direction
movement release).

0510 The 15 axis hard limit - direction overtravel:(manual or MPG +direction
movement release).

0511 The 1s axis hard limit - direction overtravel:(manual or MPG -direction
movement release).

0512 The 2nd axis hard limit - direction overtravel:(manual or MPG +direction
movement release).

0513 The 2md axis hard limit . direction overtravel:(manual or MPG -direction
movement release).

0514 The 3d axis hard limit 一direction overtravel:(manual or MPG +direction
movement release).

0515 The 3d axis hard limit 一direction overtravel:(manual or MPG -direction
movement release).

0516 The 4m axis hard limit - direction overtravel:(manual or MPG +direction
movement release).

0517 The 4”axis hard limit - direction overtravel:(manual or MPG -direction
movement release).

0518 The 5m axis hard limit - direction overtravel:(manual or MPG +direction
movement release).

0519 The 5" axis hard limit-direction overtravel: (manual or MPG -direction
movement release).

0600 The operation keyboard is not connected. Please check its connection cable
1001 Address of relay or coil is not set
1002 Function code of input code does not exist
1003 Function code COM is not used correctly. Corresponding relationship between
COM and COME is wrong. or function cade is used between COM and COME

1004 User ladder beyond the maximum permissible linage or step number. Reduce
NET number

1005 Function commands END1, END2 do not exist; errors in END1,END2: or
END1,END2's sequence is not correct

1006 Illegal output in the network. Please check the output format
1007 PLC communication failure due to hardware failure or system interruption.
Please contact with the system device manufacture

1008 Functional code is not linked correctly
1009 Network horizontal line is not linked
1010 Editing NET losses due to power-off in ladder editting

Appendix2 Alarm List

1011 Address or data format is not the one specified by this function. Input it again
1012 Address or data is wrongly input. Input it again
1013 llegal character or data defined
1014 CTR address repeated. Reselect other unused TMR addresses
1015 Functional code is wrongly used. Correspondence between JMP and LBLis
wrong. JMP is used again between JMP and LBL

1016 Incomplete network structure. Change the ladder diagram
1017 Unsupported network exists. Change the ladder diagram
1019 TMR address repeated. Reselect other unused TMR addresses
1020 No parameter in functional code. Input the legal parameters
1021 PLC stops automatically by CNC when the PLC executes overtime. Please
check the ladder logic and resolve the endless loop or the overmuch retitive
calls

1022 Names of functional code missing. Please input the name of functional codes
1023 Address or constant of functional code parameter is out of range
1024 Unnecessary relay or coil exists. Delete the unnecessary connection
1025 Functional code output wrongly
1026 NET link linage beyond the supported range. Change the ladder diagram
1027 The same output address is used in another place. Reselect the unused
output address

1028 File format wrong
1029 File losses from ladder diagram being used
1030 False vertical line in network. Delete the vertical line
1031 Message data area is full. Please reduce COD code data list capacity
1032 The first level of ladder diagram is too large to complete execution on time.
Reduce the first level of ladder diagram

1033 SFT codes beyond the max. alowed number. Please reduce the usageamount
1034 Functional code DIFU/DIFD address is repeated. Please reselect the address
1039 Code or network beyond executable area. Please clear them
1040 Functional code CALL or SP is wrongly used. Correspondence between CALL
and SP or between SP and SPE is wrong. SP functional code is used again
between SP and SPE or SP is set before using END2

1041 Level conducting line in parallel with node network
1042 PLC system parameter file is not loaded

TOP
Message Us
