The number of system control axes is 4 axes;
The spindle can realize speed and position control;
Realize automatic truss picking and picking in machine tool processing.




solution

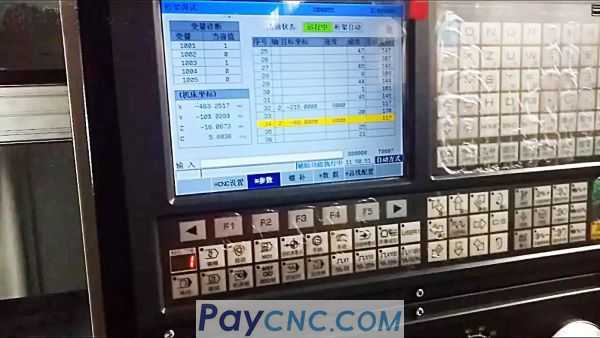

The maximum number of control axes of the 980TC3 system is 5 axes;
The 5th axis control spindle of the system can realize the spindle speed and position mode control;
Develop and design truss functions to achieve automatic truss picking and picking in machine tool processing.







Application effect

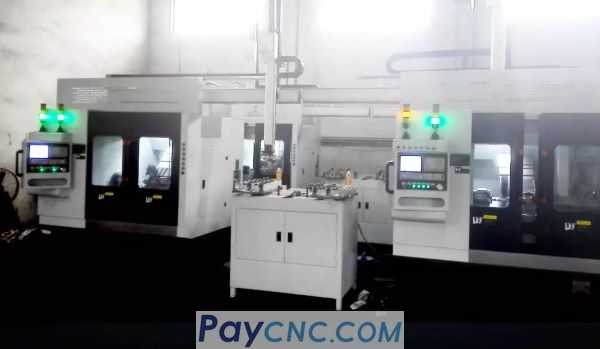

The truss can realize automatic reclaiming and retrieving operations in the machine tool processing, which can shorten the effective time of workpiece production and improve production efficiency;

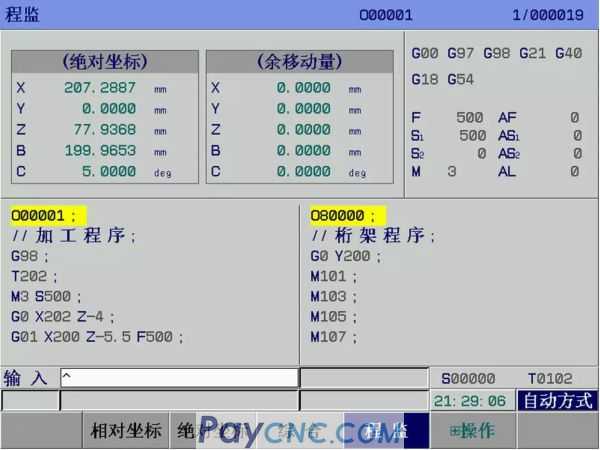

The truss program is freely programmable, and the actions, logic, and position can be programmed like ordinary programs;

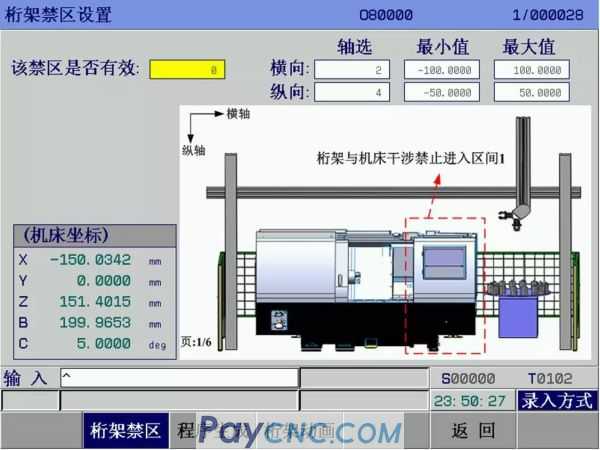

The truss forbidden zone is set to prevent machine tool collision caused by misoperation;
Truss position teaching: Move the truss axis to the corresponding position and directly read the coordinates, which is simple and convenient.
