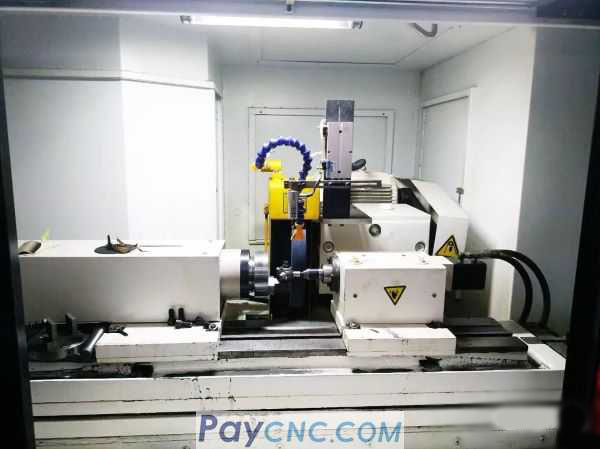

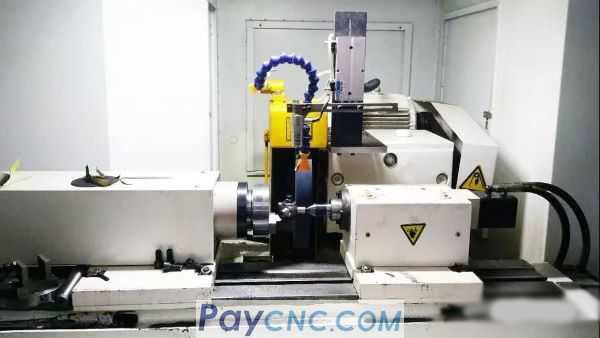

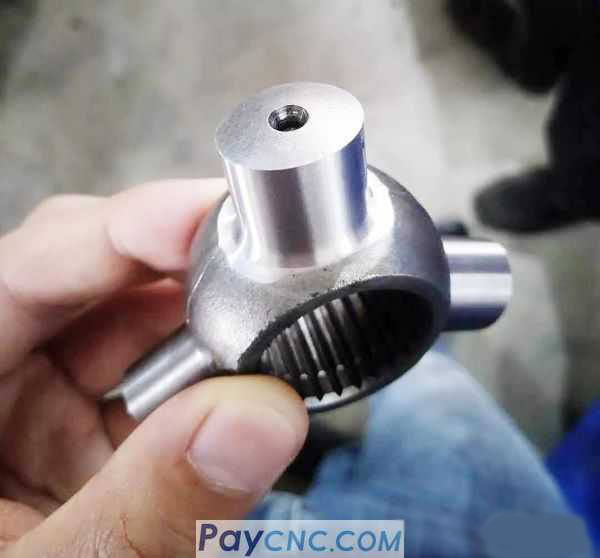

Workpiece with multiple cams, grinding in one clamping
Automatically fit the trajectory according to the lift table and follow the grinding;
Equipped with the functions of medium and long grinding, automatic grinding wheel repair and automatic compensation.



solution
Equipped with X / Z / C axis, C axis as indexing axis, and follow-up grinding using G86 command;
The X axis is equipped with a high-resolution grating ruler to ensure the repeat positioning accuracy of the machine tool to ensure product consistency;
The C axis is equipped with a circular grating or uses a high-resolution servo motor;
The lift table fitting trajectory was performed using a PC application independently developed by GSK986.

Application effect
Grinding the entire camshaft with one-time clamping, not using mold grinding, and more flexible workpiece switching;
The machining accuracy is greatly improved, which avoids the situation that the precision of the master machine cannot be controlled due to mold wear;
The addition of the grating ruler has greatly improved the repeat positioning accuracy of the machine tool, and the product consistency control is better;
Intermediate repair and long repair make the influence of wheel wear on workpiece accuracy smaller.
