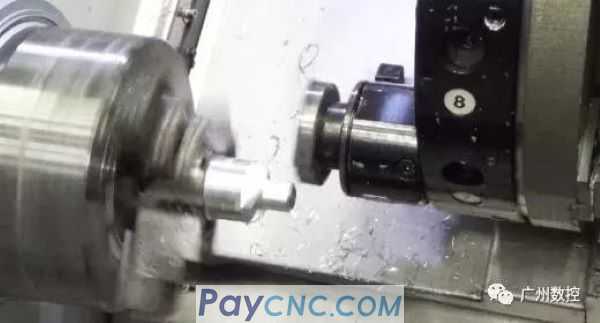

The slant bed machine is equipped with a servo spindle for workpiece positioning; the servo power head is configured or a special flying cutter disc is configured (the special flying cutter disc can be configured to improve the machining effect);
Since the spindle needs to be synchronized with the power head, the spindle and its power head use a high-precision encoder.

solution

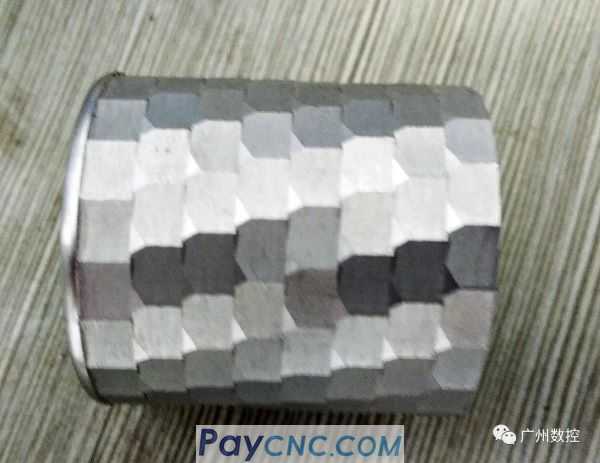

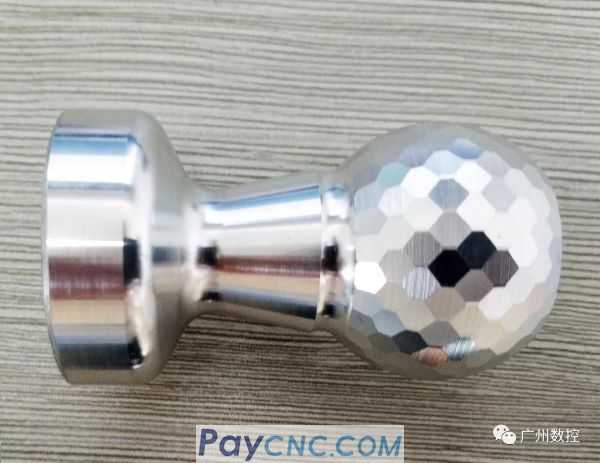

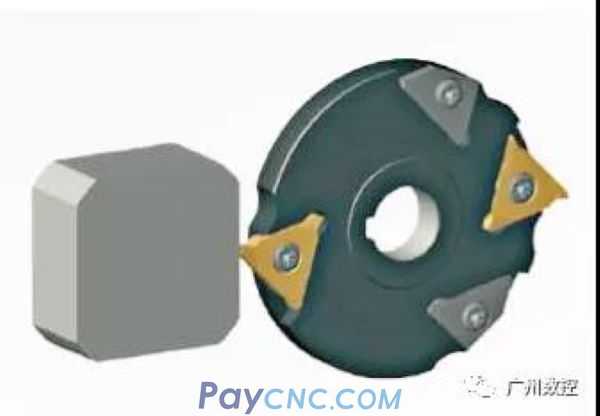

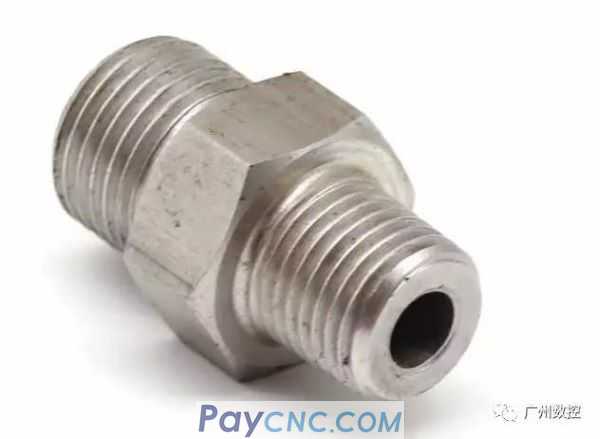

The processing shape is controlled by the number of blades of the cutter head and the system program, which can flexibly process various polygons;

Turning and milling, one-time clamping complete processing, improve efficiency.



Application effect
A robot replaces 2 manual continuous grinding and deburring operations;
The entire robot system is stable in operation, saving equipment and labor input, ensuring good production continuity;
It is an irresistible trend for robot replacement personnel to improve efficiency and reduce costs in the grinding industry. It is also a requirement for upgrading the quality of production technology.
