GSK RB08 robot for press automation production line

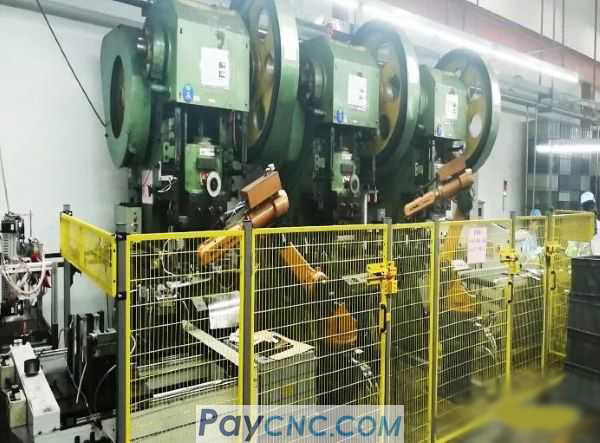

The robot replaces the human, and completes the transfer of three 63-ton punches and the workpieces between the upper and lower silos.

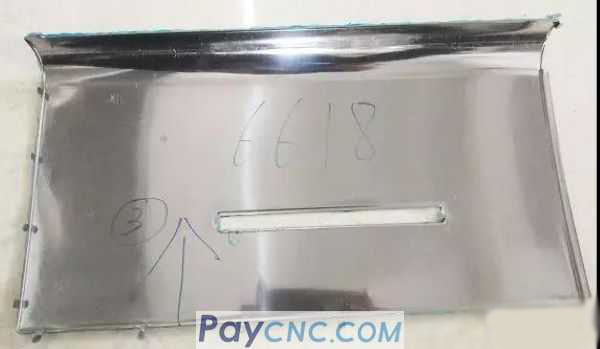

There are many product models, not many single production batches, and the robot fixture is versatile. It is necessary to realize different shapes of products to grab and load;
The production time of the special machine is 6 seconds, and the production capacity of the production line is 350 pieces / hour.







solution

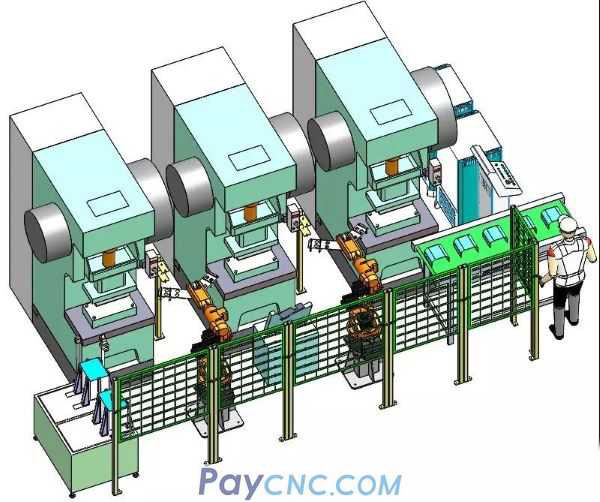

2 RB08 handling robots, 2 sets of dual-station flexible hand grips, automatic slitting and feeding machine, unloading conveying line, supporting 63 tons of punching machine, complete the blank slitting and feeding, trimming, responsibility, molding production, and finished products Collected offline
The robot hand grip adopts a dual-station flexible design and adjusts the position of each suction cup to achieve compatibility with all workpieces for suction gripping and loading and production.





Application effect
Adopt compatible flexible manipulator design and solve the problem of multiple models and small batch production on the same production line with less manufacturing cost;

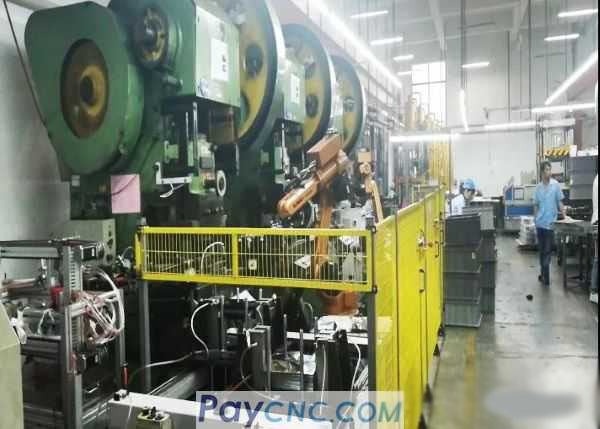

The robot operation is closely coordinated with the punch to ensure stable work, maximize production efficiency and reduce production and operation costs.
