GSK RB08 is used in plasma cleaning applications for helmet masks

Ensure the trajectory accuracy, smooth operation and continuity on the space surface of the mask;

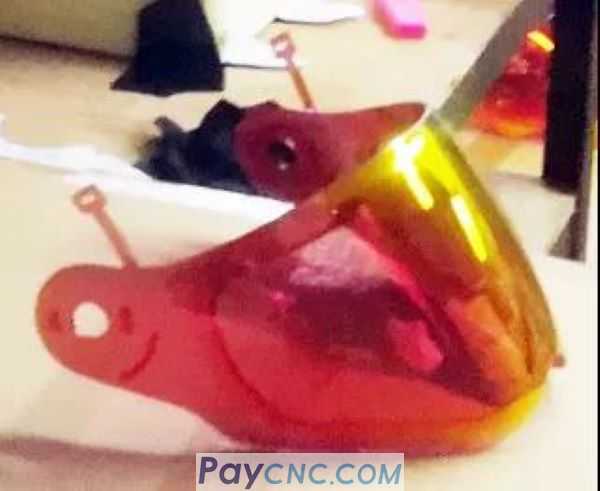

The face mask is made of plexiglass material, which must not damage the material.





solution

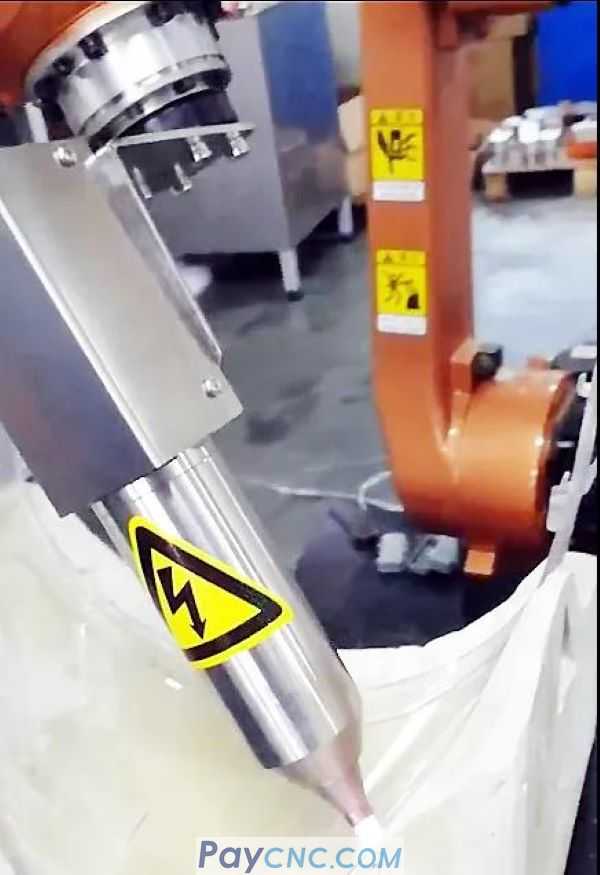

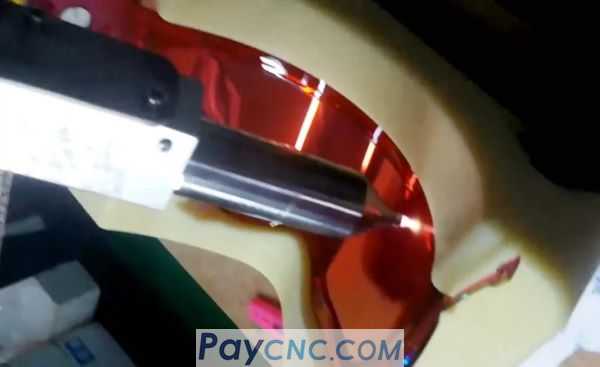

A RB08A3 robot is used to grasp the plasma gun and teach according to the actual object to obtain the precise trajectory. The robot system controls the start and stop of the plasma gun;
The flame intensity and shape of the plasma gun are adjusted manually to ensure stable output.


Application effect

The product has stable quality, high quality and controllable production capacity.

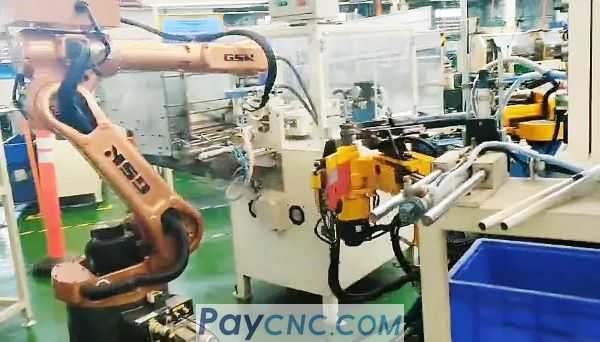

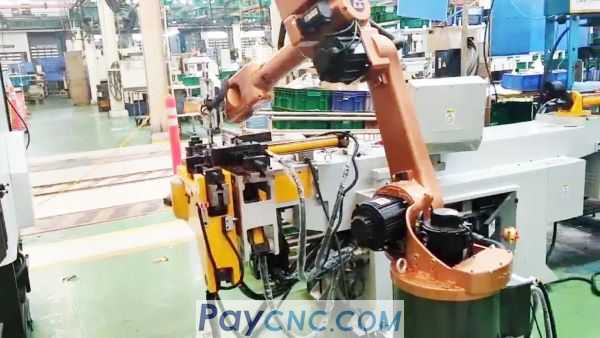

02GSK RB08A3 robot used in steel pipe bending and loading applications


Instead of manually completing the loading and unloading operations of the steel pipe bending machine;
Compatible with a variety of steel pipes.




solution

A RB08A3 robot is adopted to adopt the clamping method to be compatible with multiple specifications of picking and unloading, and the robot system controls the start and stop of the bending machine;
Adopt elevator to feed accurately, compatible with many products.


Application effect

Free people from heavy manual labor;
Compatible with different products.

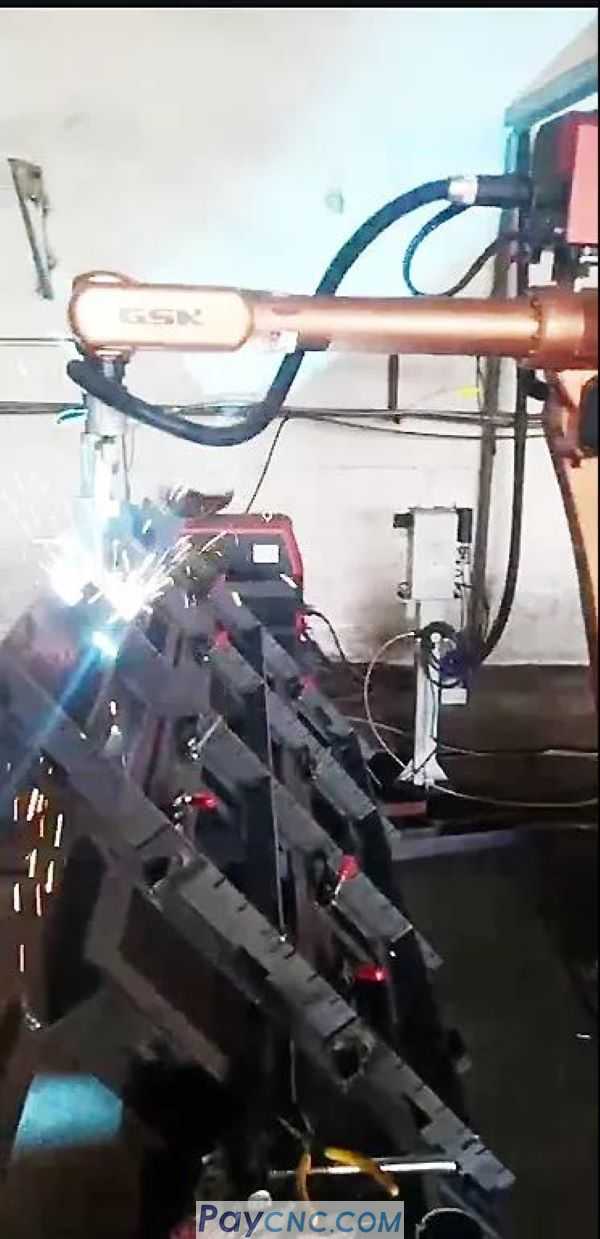

03Application of GSK RB08A3 robot in Dafangtong welding


The robot replaces the welder for welding, and the workpiece is manually loaded and unloaded, and the welding is completed by one clamping;

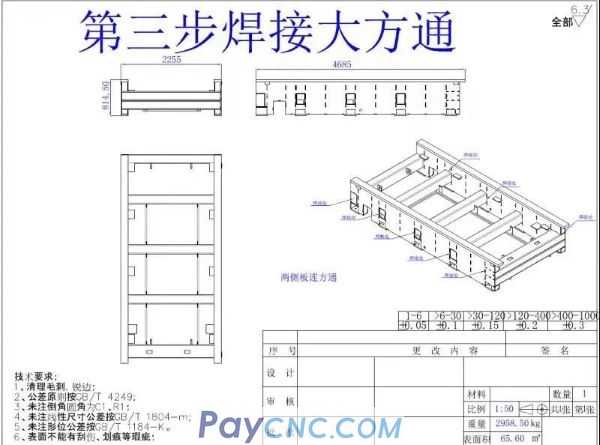

The maximum width of the workpiece is 2255mm, the maximum length is 4865mm, and the minimum wall thickness is 3mm.






solution



The project is composed of a RB08A3 welding robot, a gun cleaning mechanism, a set of welding tooling, an automatic welding power supply, an automatic anti-collision welding gun, etc .;
Due to the long workpiece, the project uses RB08A3-1840 robot;
In order to ensure the stability and continuity of welding, the project is equipped with a gun-cutting mechanism.





Application effect

The tooling realizes the clamping of the workpiece at a time, and the two robots are welded diagonally, so that the amount of deformation is effectively controlled;
The welding industry is a high-risk industry. High temperature, arc light and welding fumes have a certain impact on the physical and mental health of workers. The application of welding robots in the welding industry is a general trend. This is not only a market promotion, but also a technical upgrade requirement.
