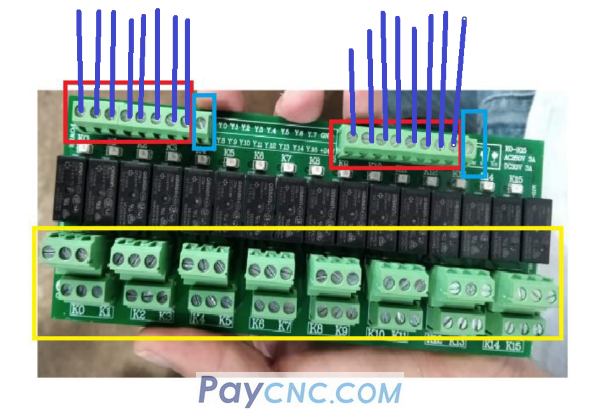

GSK218MC-H_MJB_Relay_Board_connection
GSK218MC-H User:
where and how should i connect the purple lines?
CNCmakers Support:
These are CNC output signals (Y signals)
GSK218MC-H User:
Mmm ok, can you please send an example of the CNC output signals (I mean how to connect them)
CNCmakers Support:
For the CNC output signals (Y signals), they connect to relays.
For example:
Y0.1 and cnc + 24v are connected to the coil of the relay. When cnc executes M8 or presses the (cooling) button on the panel, the relay will be energized
