GSK980TC3 Over Travel Alarm
GSK980TC3 Overtravel Alarm
Video on Youtube
This solution addresses a specific scenario where an overtravel alarm is triggered before the tool reaches the chuck jaws—a situation distinct from standard overtravel reset procedures.

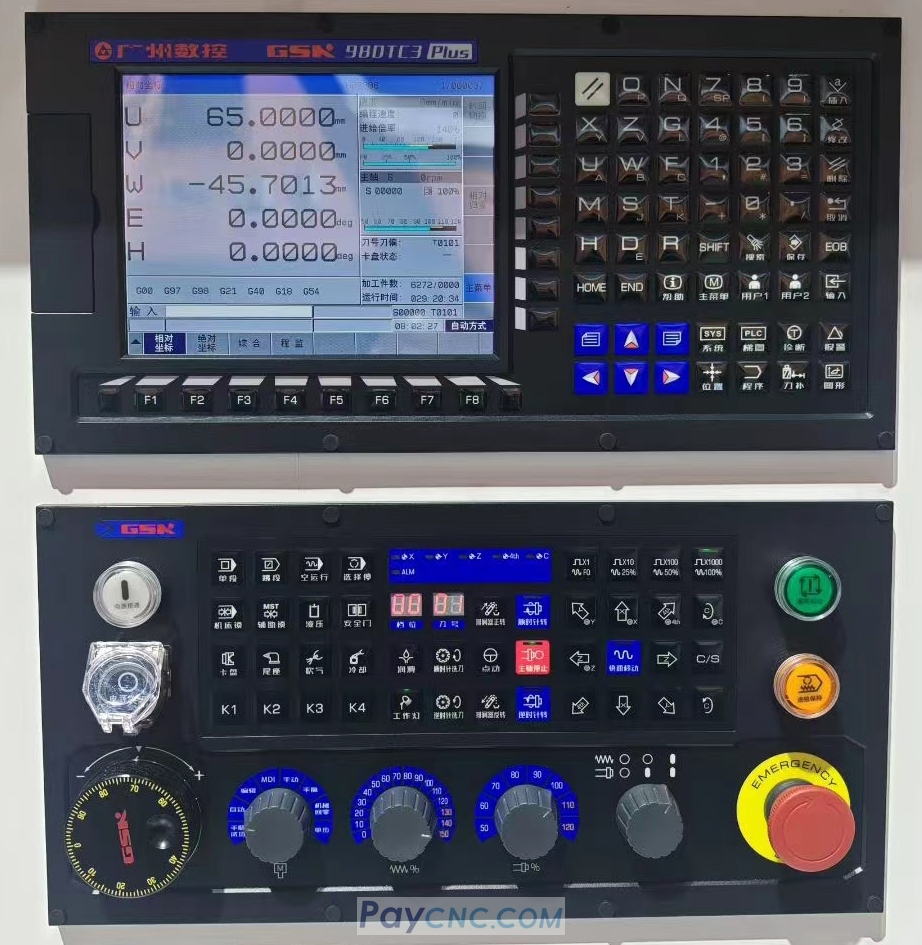

These instructions are specific to the GSK 980TC3 CNC lathe; for other systems, the same parameter logic may serve as a reference.
Switch the machine to MDI mode, enable the parameter write switch, and navigate to the bus configuration settings. Adjust the third-axis parameter from 790 to 795. Once completed, reset the system and disable the parameter write switch.
The magnitude of the parameter adjustment must be determined based on the actual distance between the tool and the chuck jaws to prevent the tool turret from colliding with the chuck.
Following this adjustment, the tool can be positioned closer to the chuck jaws without triggering an overtravel alarm.
