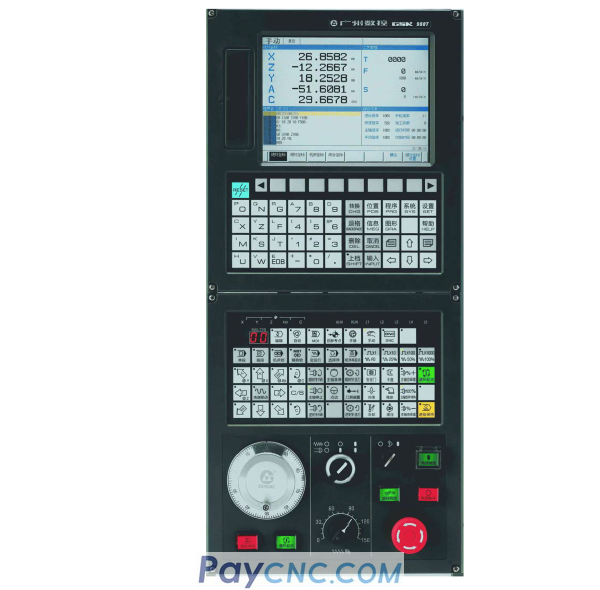

GSK988T CNC Alarm List
GSK988T CNC Alarm List
No. | Message | Content |
0000 | Emergency stop, ESP open circuit |
Recover ESP signal input to clear alarm. |
001 | Program open failure | Press reset key to clear alam or power on after power off. |
002 | One block cannot exceed 256 characters |
Modify the program because of too many characters in it. |
003 | Data exceeds the permitted range |
Data input exceeds the permitted range or the specified data exceeds 8 numbers. Modifty the data. |
004 | Addresss not found | Only input numerical value or sign instead of address at the head of the block. Modity the program. |
005 | No data fllowing addresses | Data does not follow the address or the expression followed the address is mistaken without brackets. Modify the program. |
006 | Incorrect negative sign | Sign"-" is used by mistake( use it in mistaken position or input them too many). Modity the program. |
007 | Incorrectly used decimal point | The decimal point " is used by mistake( use itin mistaken position or input them too many). Modity the program. |
008 | llegal address input | The unavailable addresses are input in the valid message area. Modify the program. |
009 | Incorrect G code | An unusable G code or G code correspondingtoa not provided function is specifed. Modify the program. |
010 | Address duplication error | The same addressed appears more than once in a block. Alternatively, a block contains two or moreG codes belonging to the same group. Please referto parameter 3403#6AD2. Modity the program. |
575 |
011 | Command cannot run in DNC occurs |
Command that cannot run in DNC is found. Modify the program. |
012 | Too many M codes | Specifying multiple M codes in the same block is not allowed. Please refer to parameter 3404#7 M3B. Modify the program. |
014 | Divided by zero | Division by zero is specified (including tan 90°). Modify the program. |
017 | Parameter writing failure | Please check whether the parameter file is in normal state. Pay attention that the user area may be corrupted. |
018 | Part program operation failure | Press "RESET" key to cancel the alarm. |
019 | End of record | The end of record (%) is specifed, or the program end is not specified. Please refer to parameter 3404#6 EOR. Modify the program. |
020 | DNC time out | DNC transmission failure; Please checkit. |
021 | The setting value of feedrate is not within the range. |
During cutting feed, the feedrate is not specified or incorrectly specified. The values for modal G98 and G99 are different. Please check modal G98 and G99, and modify the program. |
022 | The setting value of spindle speed is outof the range. |
Spindle rotational speed or surface speed is set incorretly. Please refer to parameter 3031 SCB and modify the program. |
023 | M command value is out of the range. |
A wrong M code is specified. Please refer to parameter 3030 MCB and modify the program. |
024 | G code usage error | The G code needs to be used independently, and cannot coexist with other G codes in the same block. Modify the program. |
025 | Illegal tool number | An inexistent tool number is specified. Please refer to parameter 3032 TCB and modifty the program. |
028 | T code is not allowed in this block. |
G50, G10 and G04 cannot be specified in the same block with T codes. Please refer to parameter 5006#1 TGC and modify the program. |
031 | Too many axes commanded | The number of commanded axes exceeds that of simultaneously controlled axes. Modify the program. |
032 | Axis that cannot perform | Axis not included in the selected plane is specified |
interpolation command is specified. |
or the basic axis and the parallel axis are specifed simultaneously. Modity the program. |
|
033 | llegal plane axis commanded | In circular interpolation, axis not included in the selected plane is specifed. Modify the program. |
034 | No arc radius command | In circular interpolation, neither R nor 1, J, K is specified. Refer to parameter 3403#5 CIR and modify the program. |
035 | Illegal radius command | In circular interpolation, address R value is wrong. Please refer to parameter 3403#4 RER and modify the program. |
036 | Exceeds the radius difference range |
In circular interpolation, the difference between the distance from the start point to the center point and distance from the end point to the center point exceeds the value set by parameter. Please refer to parameter and modify the program. |
037 | Thread run-out length J, K value commanded incorrectly in thread cutting. |
The run-out length exceeds the ermitted range. K value is less than zero in G32, G34 commands; J value or K value is less than zero in G92 command. Modify the program. |
038 | llegal lead command | Lead command value F is out of the range; or in variable lead thread cutting, the lead variation exceeds the range. Modify the program. |
039 | In thread cutting command, the thread run-out length of long axis is excessive. |
The thread run-out length of long axis exceeds the thread cutting length. Modify the program. |
040 | In thread cutting command, the thread run-out length of short axis is excessive. |
In G92 command, the thread run-out length of the short axis exceeds the distance from the starting point to the end point. |
041 | Illegal plane selection | In plane selection command, more than one parallel axes are specified in the same direction. Modify the program. |
042 | Metric/inch conversion command error |
The metric/inch conversion command is not specified alone in a line, or is not specified in the first line. Metric/inch conversion is performed when a subprogram is called. Modify the program. |
047 | The specifed axis does not | The specified axis does not return to the reference |
return to the reference point. | point by cycle start. Please perform reference point return. |
|
048 | Wrong reference point commanded |
In G30 block, a value other than 2~4 is specified by P. Modity the program. |
058 | G31 cannot be used in feed-per-rotation mode |
In feed-per-rotation mode, skip cutting commandis specified. Modify the program. |
059 | G31 cannot be used in tool nose radius compensation mode |
Skip cutting command is specified in tool nose radius compensation mode. Modify the program. |
065 | The offset value are accumulated excessively |
In G50 offset accumulation, the accumulated offset exceeds the permitted range. Modify the program. |
074 | llegal command G12.1/G13.1 | When the polar coordinate interpolation is startedor cancelled, the condition is wrong. 1). G12.1/G13.1 is specified in the mode that is not specified by G40. 2). Error is found in plane selection. The parameter specifing is erroneous. Modify the programor the parameter. |
075 | An unusable G code is specified in polar coordinate interpolation. |
An unusable G code is specified in polar coordinate interpolation. Modify the program. |
081 | Undefined address P | In the programs commanded by M98, G65, G66, the address P (program number) is not defined. Modify the program. |
082 | Subprogram nesting error | The nested subprogram exceeds 12 levels. |
083 | Program number not found | In the blocks that contain M98, M99, G65, G66, the program number specified by address P is not found. Modify the program. |
084 | Subprogram call error | A higher-level program or the subprogram itselfis called by M98, G66 or G66. Modify the program. |
085 | Program call statement cannot be run in MDI and DNC modes. |
Macro program call and subprogram call in MDI and DNC modes are not suppoted. Modify the program. |
090 | Axis command error in spindle constant surface speed control mode |
In modal G96, the basic calculation axis commanded by parameter does not exist. Modify the program. |
121 | Canned cycle command is specified in non-ZX plane. |
The canned cycle command is not specified in the basic ZX coordinate system. Modify the program. |
122 | Axis not included in the basicZX | Axis not included in the ZX coordinate system is |
|
coordinate system is specified in canned cycle. |
specified in canned cycle. Modify the program. | |
123 | The R value (radius value) is greater than the U value (absolute value) in G90, G92 commands. |
In G90, G92 commands, when the plus or minus signs for the R and U are different, the absolute value of R value (radius value) is greater the U value (absolute value). Modify the program. |
124 | In G94 command, the R absolute value is greater than W absolute value |
In G94 command, when the plus or minus signs for the R and W are different, the absolute valueofRis greater that of the W value. Modify the program. |
126 | Illegal plane selection in multiple-cycle command |
Cycle command is not specified in ZX plane. Modify the program. |
127 | Axis not included in the ZX plane is specified in G70~G76. |
Axis not included in the ZX plane is specified in G70~G76 commands or the G70~G76 loop. Modify the program. |
128 | Incorrect G code in G70~G73 | An unusable G code is commanded between the two blocks which is specified by addresses P andQ in G70~G73. Modify the program. |
129 | G70~G73 commands cannot be run in MDI mode |
G70~G73 commands including addresses P, Q are specified in MDI mode. |
130 | Macro statement execution is not allowed in G70~G73 loop |
Macro statement execution is not allowed in G70~G73 loop. Modify the program. |
131 | Subprogram is called in G70~G73 loop |
Subprogram cannot be called in G70~G73 loop. Modify the program. |
132 | Subprogram is called in G70~G73 command lines |
Subprogram cannot be called in G70~G73 command lines. Modify the program. |
133 | In G70~G73 commands, the addresses P or Q is out of the range |
In G70~G73 commands, the addresses P or Q is undefined or out of the range. Modify the program. |
134 | The sequence number is not found in G70~G73 commands |
The sequence number specified by addressPorQ is not found in G70~G73 commands. Modify the program. |
135 | P and Q commands error in G70~G73 commands |
In G70~G73 commands, the command valuesofP and Q are the same. Modify the program. |
136 Two continuous blocks is not Two continuous blocks is not found in G71~G73 found in G71~G73 commands commands, which will cause error. Modify the program. |
137 | In G71~G73 commands, the number of Ns~Nf blocks exceeds 100. |
In G71~G73 commands, the Ns-Nf blocks are excessive. Modify the program. |
138 | In G71~G73 commands, the Ns-Nf blocks are non-monotonic |
In multiple cycle command (G71 or G72), a non-monotonic object structure is defined; or in G73 cycle, the Z axis is non-monotonic; when theZ axis is set with retract amount or finishing allowance, the X axis is non-monotonic. Please refer to parameter 5102#1 MRC and modify the program. |
139 | The positioning point commanded by G71~G73is within the cutting range |
When the positioning point commanded by G71~G73 is within the cutting range, tool ollision may occur. Please refer to parameter 5104#2 FCK and modify the program. |
141 | In G73 cycle, the tool retract direction of X axis is inconsistent with the finishing allowance direction. |
In G73 cycle, the tool retract direction of X axis is opposite to the finishing allowance direction. Modify the program. |
142 | In G73 cycle, the tool retract direction of Z axis is inconsistent with the finishing allowance direction. |
In G73 cycle, the tool retract direction of Z axis is opposite to the finishing allowance direction. Modify the program. |
144 | GO or G01 is not commandedin starting block of the G71~G72 loop. |
G0O or G01 needs to be commanded in starting block of the G71~G72 loop. Modify the program. |
145 | None of G00-G03 is commanded in starting block of the G73 loop |
G0O, G01, G02 or G03 is not commanded in the starting block of the G73 loop. Modify the program. |
146 | Only X axis increment is needed in the starting block of G71 loop |
X axis is not commanded in the starting block of the G71 loop, or the X axis increment is zero, or Z axis is commanded. Modify the program. |
147 | Only Z axis increment is needed in the starting block of G72 loop |
Z axis is not commanded in the starting block of the G71 loop, or the Z axis increment is zero, or X axis is commanded. Modify the program. |
148 | The single feeding amount in G71 or G72 command is less than zero |
The single feeding amount in G71 or G72 command is less than zero. Modify the program. |
149 | The single tool retracting amount | The single retracting amount R(e)in G71 or G72 |
R(e)inG71 on G72 commandis less than zero |
command is less than zero. Modify the program. | |
151 | The number of repetition R(d) in G73 command is out of the permitted range |
The number of repetition R(d) in G73 commandis less than 1 or greater than 000 ater rounding. Modify the program. |
156 | R(e) is less than zeroin G74or G75 command |
Single tool retracting amount R(e) is less than zero in G74 or G75 command. Modify the program. |
157 | R(Od) is less than zeroin G74or G75 command |
The tool retracting amount R(Od) is less than zero in G74 or G75 command when the cutting feed reaches the end point. Modify the program. |
161 | The repetitin number of G76is less than 1 or greater than 99 |
The repetition number of G76 is less than 1 or greater than 99. Modify the program. |
165 | The G76 finishing alowance R(d) exceeds the permitted range |
The G76 finishing allowance R(d) is less than a minimum increment. Modify the program. |
166 | During taper thread ctting commanded by G76, the R value and U value are unmatched |
During taper thread cuting commanded byG76, the start point of machining is between the thread start point and thread end point. Modify the program. |
167 | Thread height P value is not specified in G76 command |
Thread height P value is not specified in G76 command. Modify the program. |
168 | The G76 thread height is less than the finishing allowance or the minimum cutting amount |
The G76 thread height is less than the finishing allowance or the minimum cutting amount. Modify the program. |
169 | The Q value in G76 commandis not within the range |
The first cutting depth is not defined in G76 command: the Q value is not within the range or not input. Modify the program. |
180 | Illegal S command in rigid tapping |
The S code in rigid tapping is undefined or outof the range. Modify the program. |
181 | Illegal K command in rigid tapping |
The specified repettion number K value is out of the range in rigid tapping. Modify the program. |
182 | Illegal F command in rigid tapping |
The cutting feedrate value is F is out of the range in rigid tapping. Please check the modal G98 and G99 and modify the program. |
183 | Program er in rigid tapping | The M code and S value is not in the same block in rigid tapping. Modify the program. |
184 | Illegal axis operation in rigid tapping |
A move axis is specified between the M code and G84 command in rigid tapping. Modify the |
591 |
program. | ||
185 | The spindle cannot perform rigid tapping |
In rigid tapping, the spindle is not selected. Modify the parameter. |
186 | Plane alteration during rigid tapping |
During rigid tapping, a non-G18 plane is switchedor the rigid tapping is enabled in non-G18 plane. Modity the program. |
187 | Data error in rigid tapping | The specified distance is too short or too long in rigid tapping. Modify the program. |
188 | Data retition in rigid tapping | The same M code or S code is repeated between M code and G84 in rigid tapping. Modify the program. |
189 | M code repetitin in rigid tapping | In rigid tapping, the M code cannot be in the same block with the M code which locks C axis in dilling canned cycle. Modify the program. |
190 | Servo spindle command occurs in rigid tapping |
The increment of the servo spindle occurs in positioning command in rigid tapping. Modify the program. |
201 | Incorrect command used in macro program |
An unusable function is specified in custom macro program. Modify the program. |
202 | Format error in macro program | There is a format error in <Formula>. Modify the program. |
203 | llegal variable number is usedin macro program. |
A value not defined as variable number is designated in the custom macro. Modify the program. |
204 | Macro program call repetition | M98, G65 or G66 is called in G66 modal state in the same program. Modify the program. |
205 | Bracket nesting error | The number of bracket nesting level exceeds 5. Modity the program. |
206 | Illegal operation data | The argument of SQRT is a negative value; The arguments of BCD and BIN are negative values, or the BIN argument value cannot converted to correct BCD code. Modify the program. |
207 | Excessive macro program modal call |
Macro call or macro program modal call nesting exceeds 4 levels. Modify the program. |
208 | Branch of macro program cannot used in DNC and MDI operation |
Branch of macro program is used in DNC and MDI operation. Modify the program. |
209 | End statement absent | DO-END is not 1: 1; the END block contains other illegal command or the branch cannot be madetoa location within the loop. Modify the program. |
210 | Limited authority | Argument assignment cannot be executed in MDIor DNC mode due to limited authority. Modify the program. |
211 | llegal repettion number | Condition 1Sn≤3 is not fuilldl (n in Don). Modify the program. |
212 | NC statement and macro call statement coexist in the same block |
NC statement and macro call statement are used mixedly. Modify the program. |
213 | Illegal macro sequence number | The defined sequence number in branch command is not within 1-~9999, or they cannot by searched. Modify the program. |
214 | llegal argument address | An unallowable address is specified in <argument> . Modify the program. |
216 | Illegal argument value | The argument value is erroneous or ilegal. Modify the program. |
217 | Data error in logical operation command |
The data in logical operation command OR, XOR, AND are negative values. Modify the program. |
218 | G67 modal call cancel is commanded |
When G66 macro modal call is not specifled, G67 modal call cancel is commanded. Check if it is necessary to write G66 command. Please refer to parameter 6000#0G67 and modify the program. |
251 | The intersection point cannot be determined in tool nose radius compensation mode |
The intersection point cannot be determined in tool nose radius compensation mode. Modify the program. |
252 | Tool nose radius compensation mode cannot be set or canceled in circular interpolation |
Tool nose radius compensation mode is set or canceled in circular interpolation. Modify the program. |
253 | Compensation plane switchingis not allowed in tool nose radius compensation |
Compensation plane is changed in tool nose radius compensation mode. Modify the program. |
254 | Interference is generated in circular block in tool nose radius compensation mode |
In tool nose radius compensation mode, the start point or end point of an arc is the same with the center point, or the end point is not on the arc, which |
may cause overcut. Modify the program. | ||
255 | In tool nose radius compensation mode, interference occurs in G90 or G94 block |
Overcut may occur when tool nose radius compensation is commanded in G90 or G94 block. Modify the program. |
256 | Overcut oCcurs during interference check in tool nose radius compensation mode |
The overcut may occur in tool nose radius compensation mode. Modify the program. |
257 | The cutter path direction is diferent with the programmed path direction in tool nose radius compensation mode. |
The tool path direction is different with the programmed path direction in tool nose radius compensation mode (90°~270° diference). Overcut may occur. Modify the program. |
258 | G41 or G42 execution is not allowed in MDI mode |
G41 or G42 (tool nose radius compensation) is specified in MDI mode. Please refer to parameter 5008#4 MCR and modify the program. |
259 | Overcut is produced within the cutting full circle |
Overcut is produced within the cutting full circle in tool nose radius compensation mode. Please refer to parameter 5008#5 CNF and modify the program. |
260 | Overcut may be produced when a step less than the tool radiusis machined |
In tool nose radius compensation mode, overcut may be produced when a step less than the tool radius is machined. Please refer to parameter 5008#6 CNS and modify the program. |
261 | The circular radius is less than the tool radius when a inner circle is machined |
In tool nose radius compensation mode, overcut may occur if the circular radius is less than the tool radius when an inner circle is machined. Modify the program. |
262 | Circular command occurs when tool nose radius compensationis temporarily cancelled or set |
In tool nose radius compensation mode, when G command for which the compensation mode needs to be temporarily cancelled is specified, circular command is specified to set or cancel the compensation mode. Modify the program. |
263 | Error is found in tool nose radius compensation mode |
Programming error or operation error is found in tool nose radius compensation mode. Modify the program. |
