GSK988T on SMTCL CHK52 and BOCHI CK50S
Processing material is 40Cr motor shaft core;
It is required that the processed motor shaft core be mounted on the electric spindle motor with high speed, smooth rotation, small runout and low noise.
solution
Using Shenyang CHK52 and Baoji CK50S CNC lathe equipped with Guangzhou CNC system 988T, the clamping tooling plan and processing technology are formulated according to the customer's parts
Customer-made tools;
The dimensional accuracy of each process after debugging is stable at 0.01mm, which meets the product requirements;
Multi-process can continuously run normal batch production;
After the finished parts are assembled, all the indicators required for the operation of the electro-spindle are achieved.
Application effect

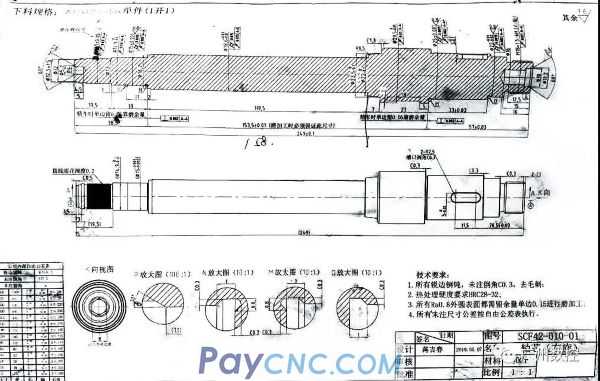

After processing, the shaft core meets the requirements of the drawing;
The motor meets customer requirements after assembly.
