GSK988TB on turning & milling machine processing eccentric shaft

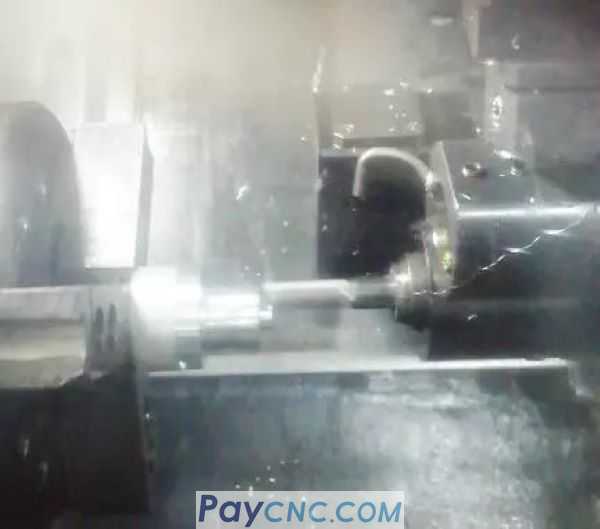

On a lathe-milling machine tool, the polar coordinate interpolation function is used for flat machining of the eccentric shaft, and the machining surface must be flat.
solution
Correct tool setting: X-axis centering must be accurate (that is, the center of the milling cutter must be on the same horizontal line as the center of the workpiece);
The tool path must add the machining tool radius. [Due to the small workpiece diameter (Φ 16 mm), the milling cutter used is large (Φ 16 mm). If C compensation is used in the program, too many empty tools will be lost during the program. Therefore, the tool coordinate value (8mm) can be added to the program coordinate value. The relevant processing conditions are as follows:
Application effect

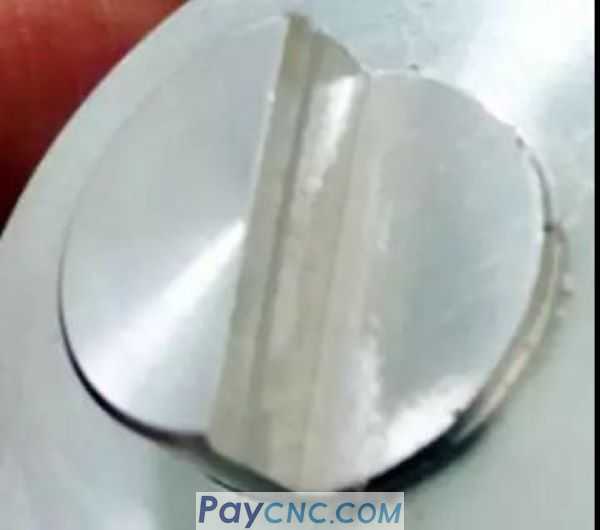

The machining surface of the workpiece is flat, which meets the customer's requirements, and the machining effect is recognized by the customer.
