HK80B2000 lathe with GSK988T making motor shells

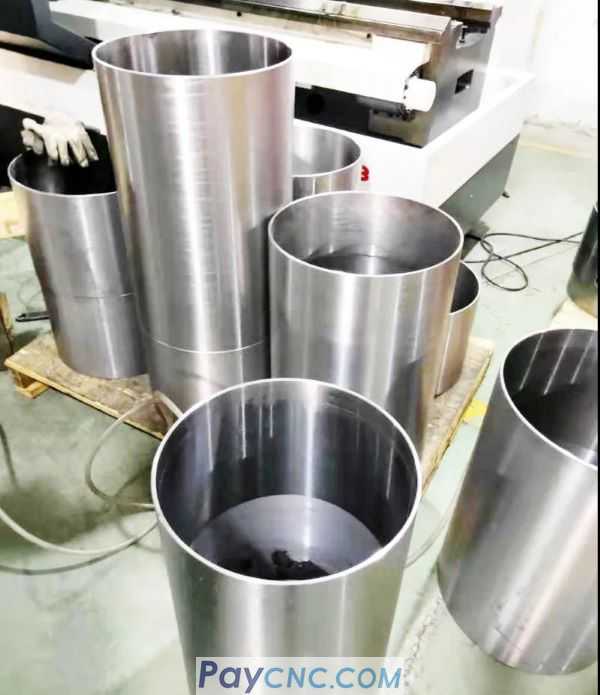

Motor external cooling shell seamless tube material, diameter 300-380mm, length 400-600mm, requires the boring of the inner hole and outer circle of the car and two end faces.





Procedures and processes
According to the customer's part processing diameter and length, it is recommended to choose Baoji machine tool HK80B / 2000 with GSK988T system and center frame;
Processing technology exchange, customers design and process tooling fixtures by themselves;
Processing technology:

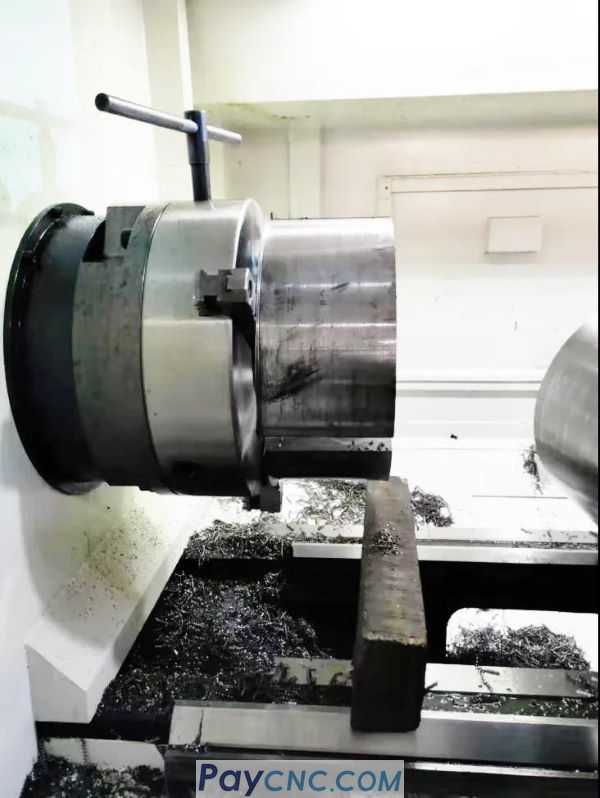

Clamp outer circle, flat end face and bore hole;

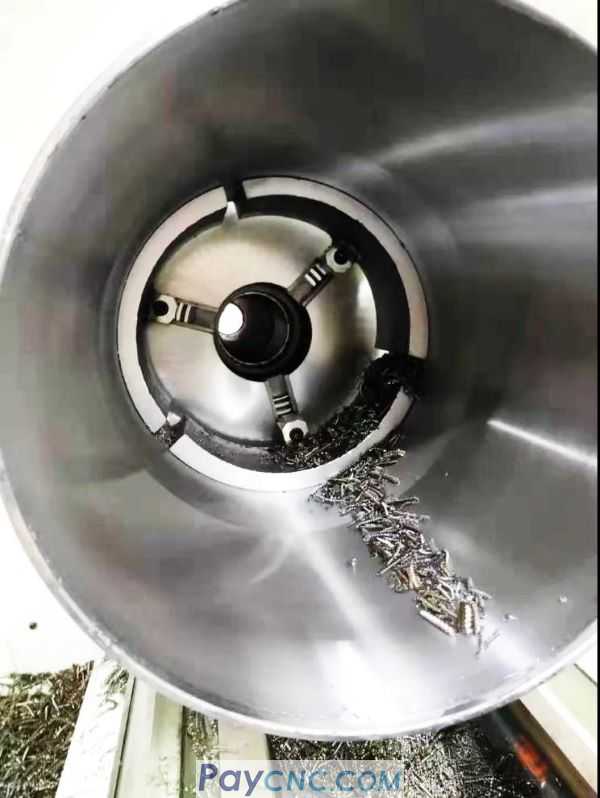

U-turn inner brace, boring the inner hole on the other end, the end face of the car;

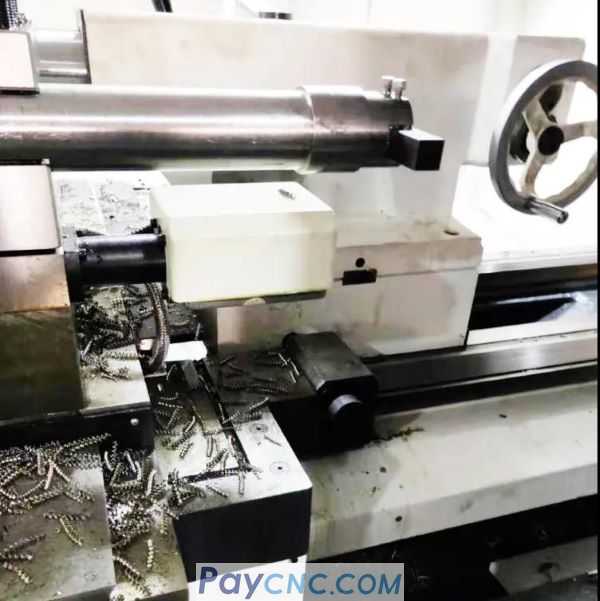

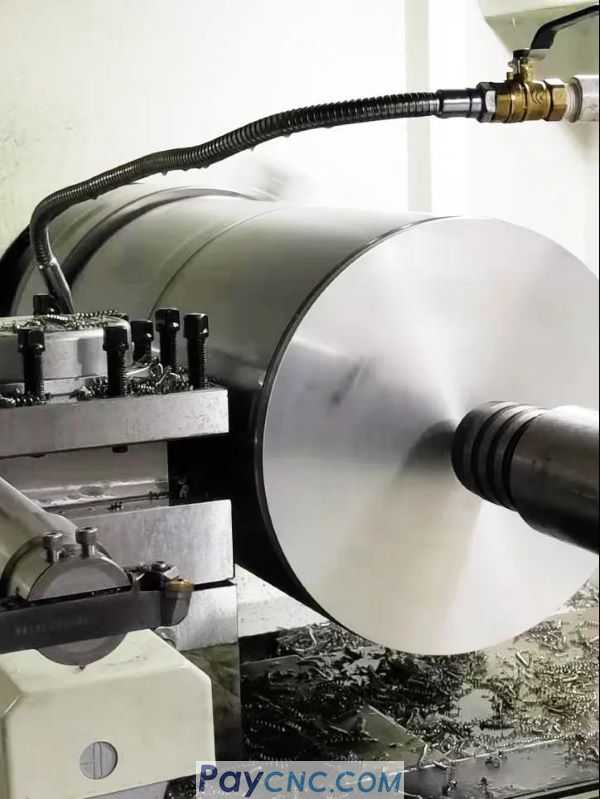

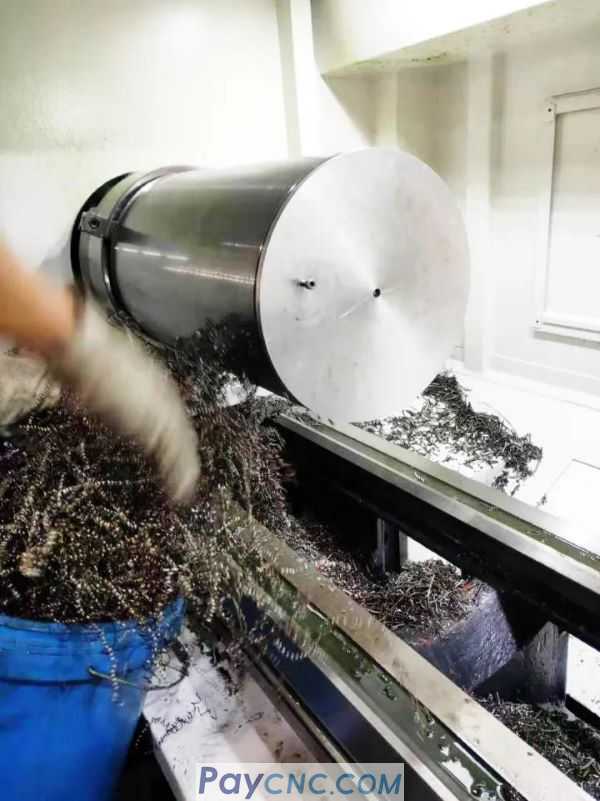

The auxiliary positioning plate plus the tailstock top clamps the motor to cool the shell, and the rough car is finely rounded.
On-site master operator training in system operation and programming.










Application effect
Meet customer requirements for processing efficiency and effectiveness.
