How to change Parameter on DA98A Driver

 First, open the electrical cabinet, find the driver, and press the left arrow key. Figure one

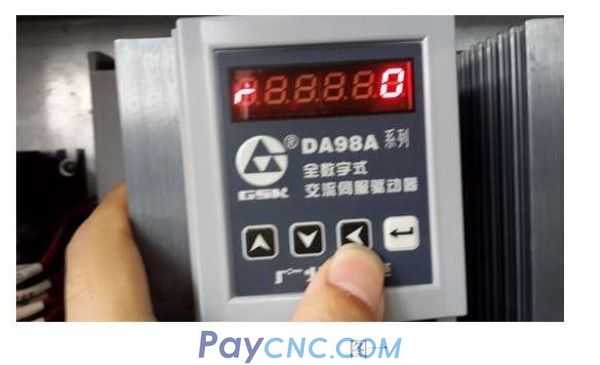

Second, press the left arrow key and press it once, as shown in Figure 2. The second time is shown in Figure 3.





Third, press the up key, as shown below




Fourth, press the Enter key, as shown in Figure 5 below.






Fifth, press the up key to adjust to the fifth parameter




Sixth, press the enter key to enter the parameter and modify it.

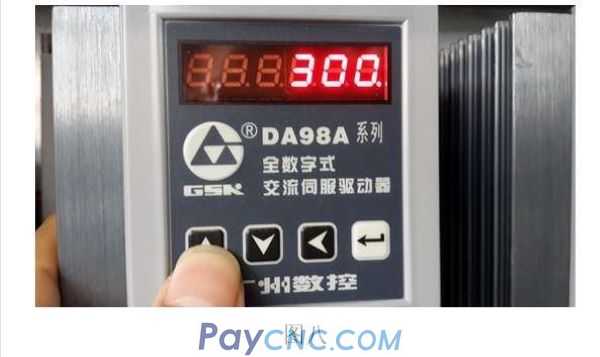

Seventh, press the up key to adjust the parameter size.

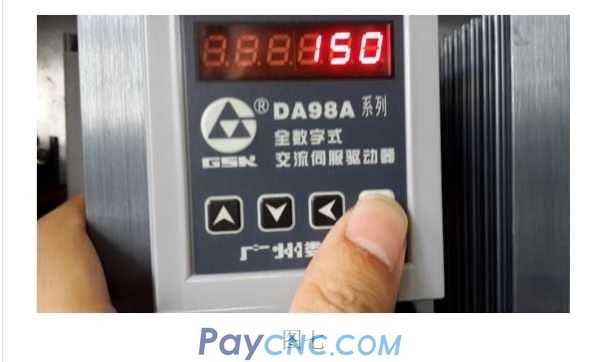

Eighth, press the OK key to confirm the modification of this parameter and temporarily save this parameter.

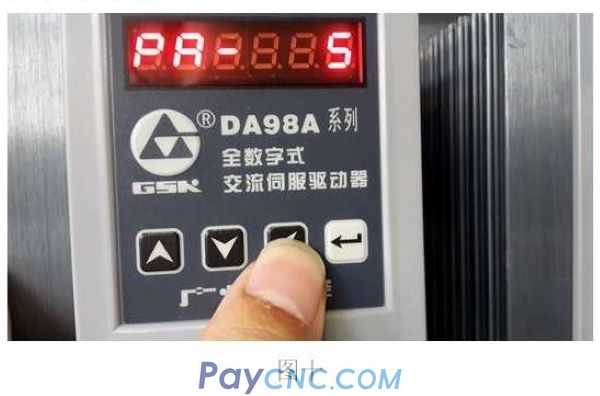

Ninth, after the parameter modification is completed, press the left key to return to the PA- interface, as shown in Figure 10 and Figure 11.

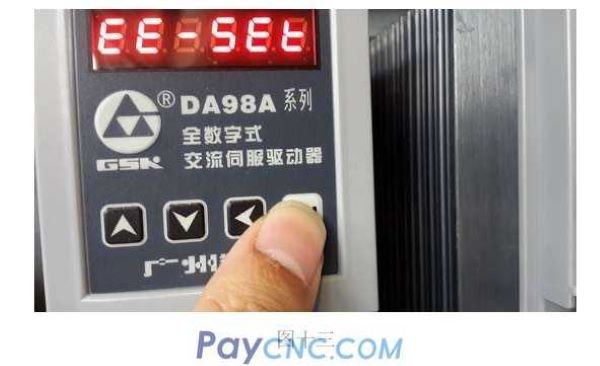

Tenth, press the up key to find the EE- interface, as shown in Figure 12.



Eleventh, press and hold the confirmation key, as shown in the figure below. When figure 14 appears, saving is complete.
