How to fix a broken turret

How to fix a broken turret.

Step by step, telling you how to fix a broken 6-station turret, could be reference to 4-station, 8-station tool posts and turrets.

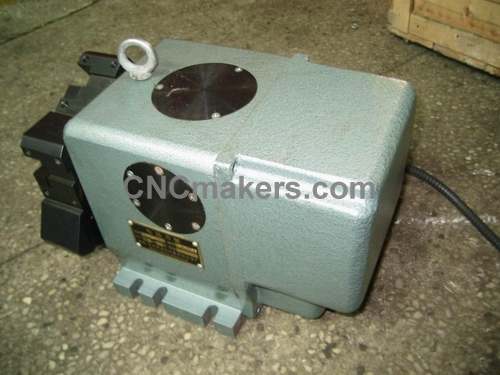

Here is the 6 position turret.

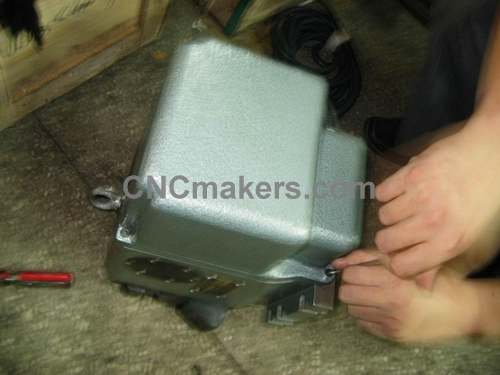

Firstly,Take off the back cover of the turret.

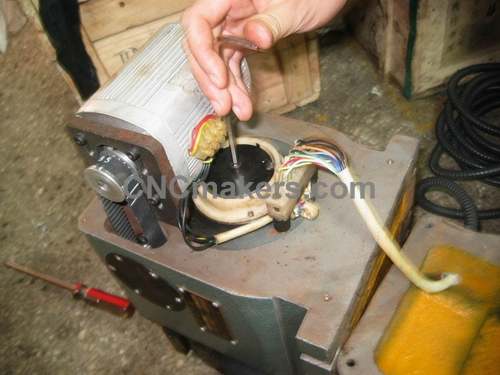

And Loose the screw at the center of the magnet disk .

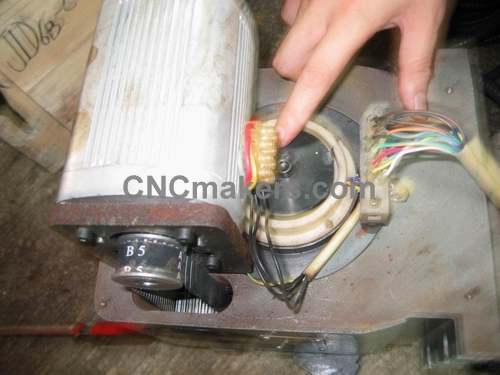

Then move slightly forward or backward to right positions,so the Hall effect element can detect the sensors and feedback the signal to the cnc controller system.

Few possibilities:

1),Check the motor of turret. It is running or not? f it is not running, you may check the fuse on the electric panel.
2),if the motor is running, could be the rotation is wrong (clockwise or counterclockwise); you must check the polarity of the cables
3), Check the voltage, is your voltage suitable for turret or not?
