How to use G10 on Fanuc CNC
The FANUC system uses programs to modify workpiece coordinates or tool offsets. The common method is to use macro variables to modify; today I will show you how to use programs to modify workpiece coordinates and tool offsets, which is actually a G10 function.
How many workpiece coordinate systems does FANUC system have?
Answer: G54~G59, G51.1 P1~G54.1 P48
Example of FANUC program to modify workpiece coordinates

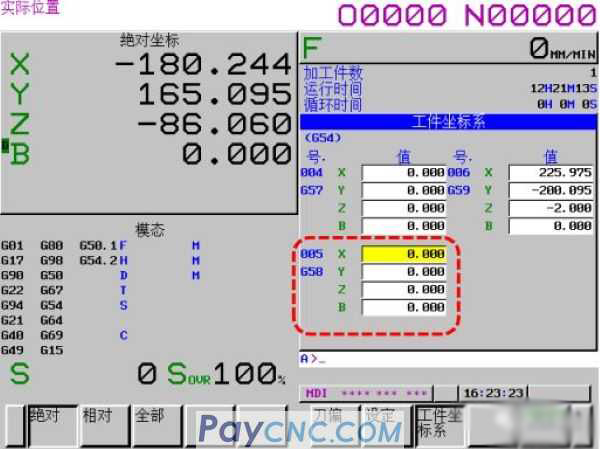

Examples of FANUC program modification G54~G59:
Edit the following block:
G10 L2 P5 X11. Y22. Z33.;
Note: P5 represents the fifth workpiece coordinate system, namely G58
