Use Yuhong V-8 machining center machine tool with GSK 25iMb system to process strip seat parts
According to the drawing size, the # 45 steel stripe seat is processed with a smoothness of Ra3.2 and a roundness tolerance of 0.015mm.







solution
According to the customer's drawings, draw processing drawings, optimize processing strategies, and process processing procedures;
For non-batch processing production parts, the traditional precision flat-mouth vise clamping method is used to process the front, back and both sides of the thread respectively;

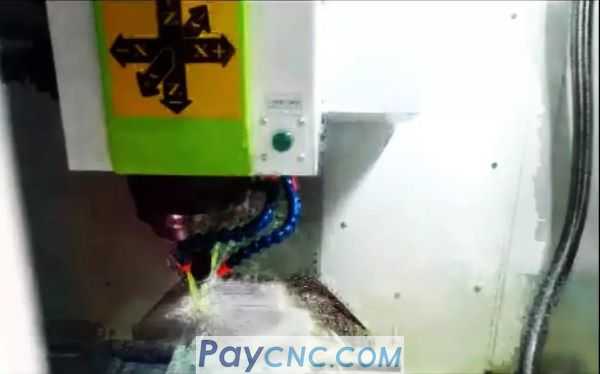

The inner hole is milled by spiral method, which has the advantages of small cutting force and high processing efficiency;
Directly connected spindle structure, accurate and fast rigid tapping;
The sharp edges of the machine are chamfered throughout the week, the size is uniform, and the surface is bright and beautiful.


Application effect

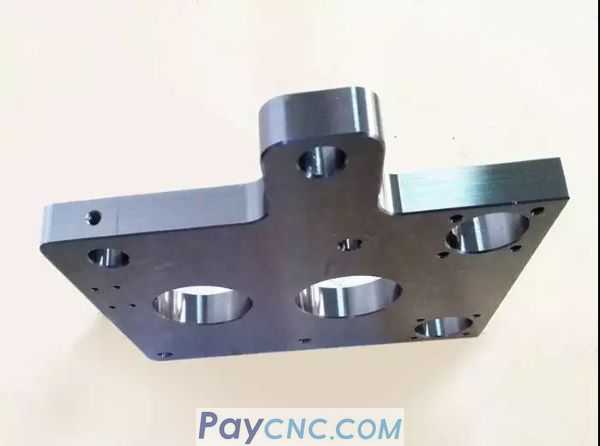

Check the processing size according to the drawing processing size, and the fine holes are within the tolerance of 0.015mm;
The thread can pass smoothly, but the stop rule cannot pass, which meets the testing requirements;
The machining cutting texture is fine and tidy, which meets the requirements of drawing roughness.
