Non-Monotonous Alarm in Finishing Path
Q: We have a TK36 CNC lathe with GSK980TDa CNC system, the CNC always alarm for “Non- Monotonous” in the finishing path, is there anything wrong for below program?
G97 G99
M3 S500
T0101
G0 X124.
Z2.
G71 U3. R0.5
G71 P11 Q22 U0.8 W0.05 F0.2
N11 G0 X0
G1 Z0 F0.1
G3 X107. Z-9.3 R158.53 F0.08
N22 G1 X124.
G0 Z80.
M30
A: X and Z dimensions must be changed monotonously (always increasing or reducing) for the finishing path.

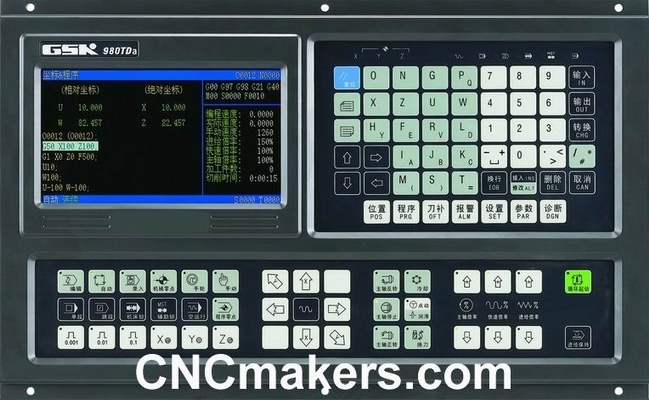

GSK 980 TDa Specification:
http://www.cncmakers.com/cnc/controllers/CNC_Controller_System/GSK980TDa.html
