Polygon processing on GSK 988TA

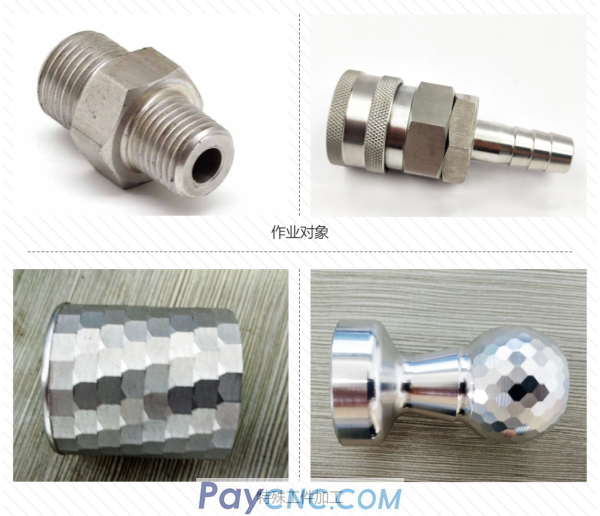

Processing various polygons on the outer circle of cylindrical parts;
solution

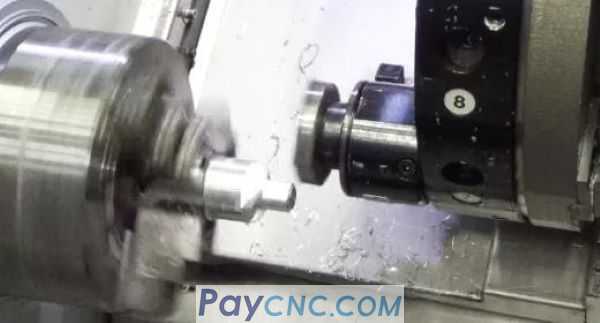

The inclined bed machine tool is equipped with a servo spindle for workpiece positioning; it is equipped with a servo power head or a special fly cutter (the special fly cutter can be configured to improve the processing effect);
Since the main shaft needs to be synchronized with the power head, the main shaft and its power head use high-precision encoders.
Application effect

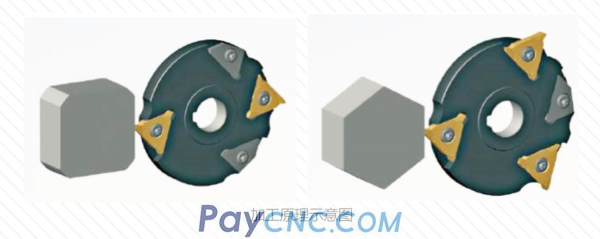

The processing form is controlled by the number of blades of the cutter head and the system program, which can flexibly process various polygons;
Turning and milling are integrated, and the machining is completed in one clamping, which improves efficiency.
