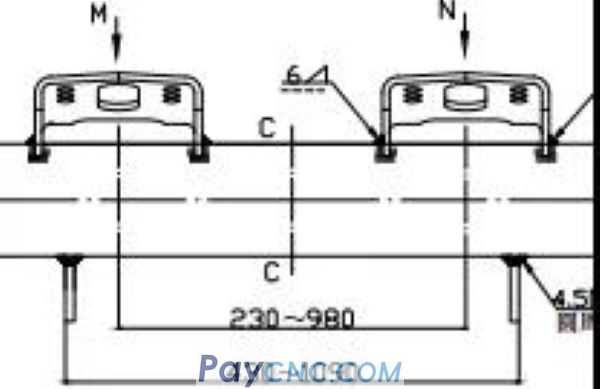

The workpiece has square shaft and round shaft full welding processing;

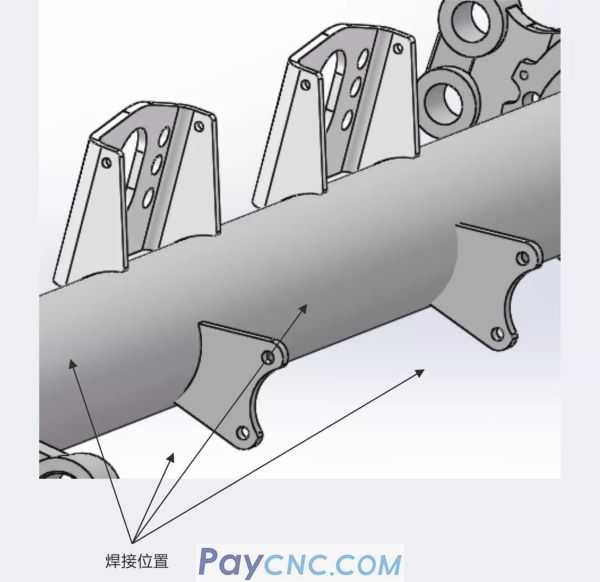

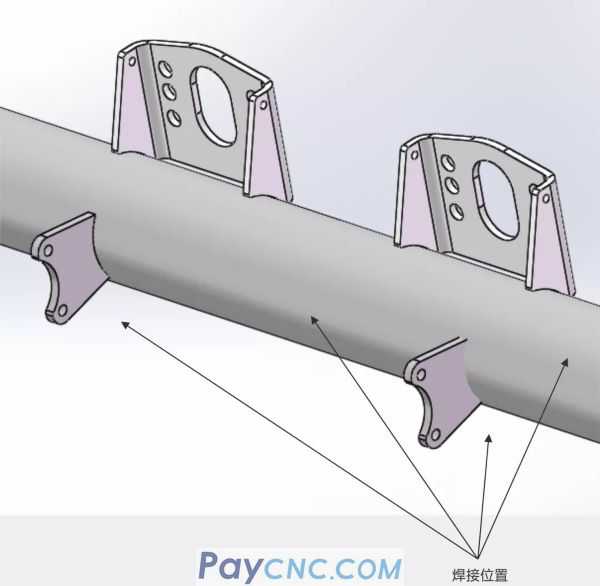

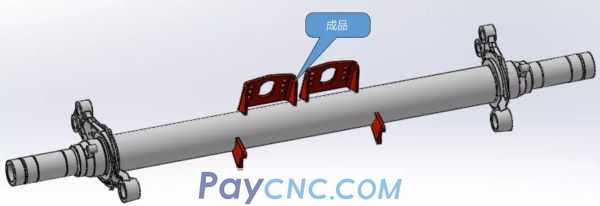

This welding robot only completes the full welding of the gas chamber seat and support plate;
This welding adopts double robot symmetrical welding to reduce deformation, and a set of positioner (tooling);
Robot welding requires starting point location and seam tracking functions.








02
solution

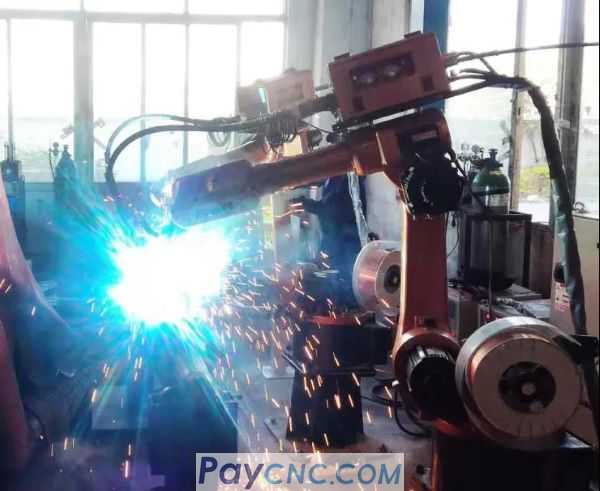

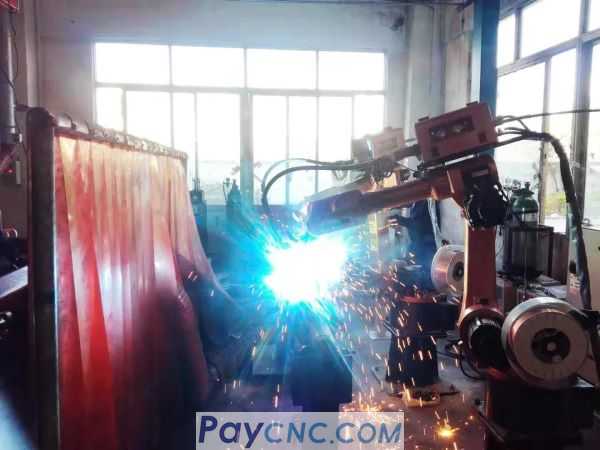

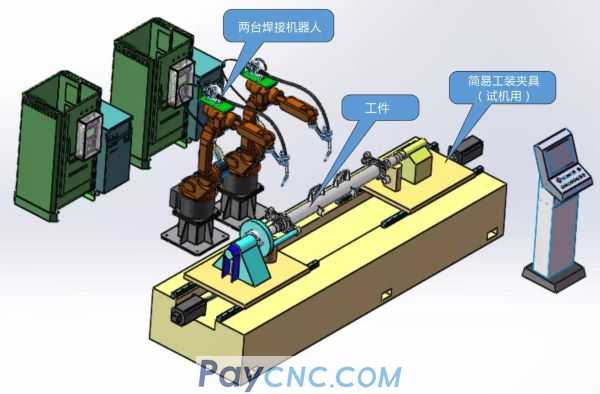

2 RH06 welding robots, 2 gun cleaning mechanisms, 2 sets of anti-collision welding guns;

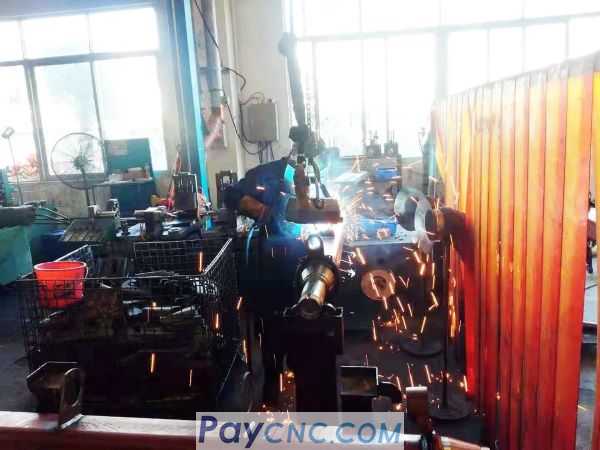

After the spot welding of the workpiece is completed, manually hoist the axle and weld one side of the complete weld seam;
The length of the workpiece changes, which is driven and adjusted by the lead screw and servo motor;
On the other side of the spin welding, the installation and positioning of the axle is supported by an auxiliary cylinder.





03
Application effect

Double-station welding ensures product quality, avoids abnormal deformation problems, and improves work efficiency;
Reducing the burden of manual welding by welders and maintaining uniform stability can reduce the production cost of enterprises.
