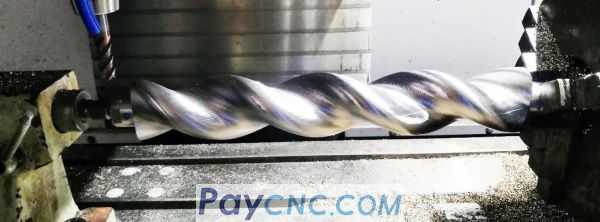

Stator mold mandrel making on V8 Machining Center with GSK25i
Use Xinnuo Precision V8 vertical machining center with GSK 25i CNC system;
Add TK13250 vertical and horizontal rotary table for processing;It is required that the overall surface of the processed part has no defects such as knocks and bumps, and the finish: 0.8;
It is processed and inspected according to the drawing size.
solution
Process analysis: The workpiece material is S136 mold steel with a hardness of HRC48-52, which is a difficult-to-machine material. When processing, it is advisable to use a small cutting amount of side cutting;
Tool cooling: using compressed air;
Workpiece clamping: three-jaw clamping directly;
Processing technology: three-axis roughing, four-axis roughing, four-axis semi-precision, four-axis precision.
Application effect
The surface of the finished product is smooth and has no defects, and the finish is up to standard;
The size of the finished product meets the requirements of customer drawings.
