Ten commonly used fixtures
People in the machinery industry, especially those who do machining, need to be proficient in using various fixtures. Today I will tell you about ten commonly used fixtures! ! Have you used it all?

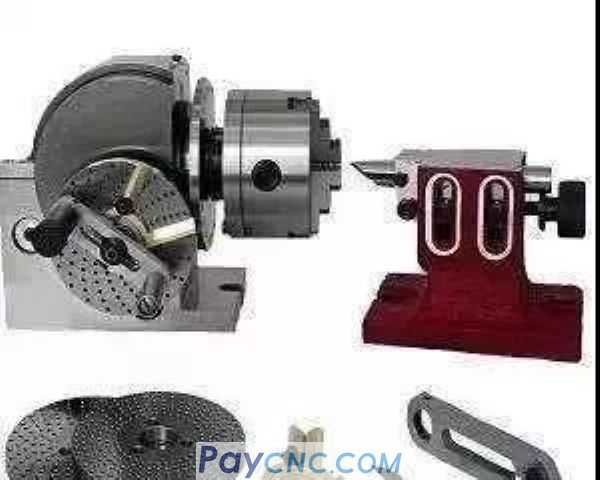

Tenth place: dividing head
The scenery that used to be so declining now. It's all caused by the indexing spindle. So please rank tenth.

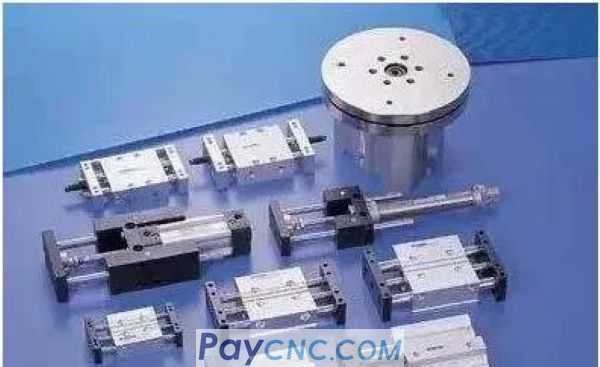

Ninth place: pneumatic cylinder fixture
The essence of automatic clamping fixture. Among the many fixtures, laborers should like the pneumatic fixture the most.

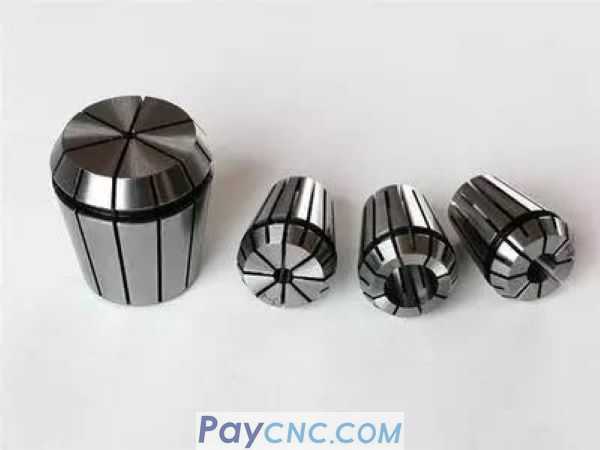

Eighth place: Spring collet
How can tools with a wide range of chuck specifications use fewer handles to solve the clamping problem? Here you can find the answer.
Seventh place: Magnetic platform
How to more easily place the parts without clamping positions on the workbench for you to process? See how he did it?

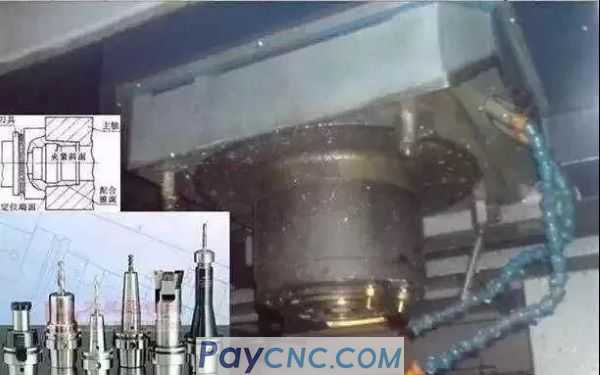

Sixth place: spindle and tool holder
The spindle and tool holder are the crystallization of human top wisdom and cutting-edge technology.

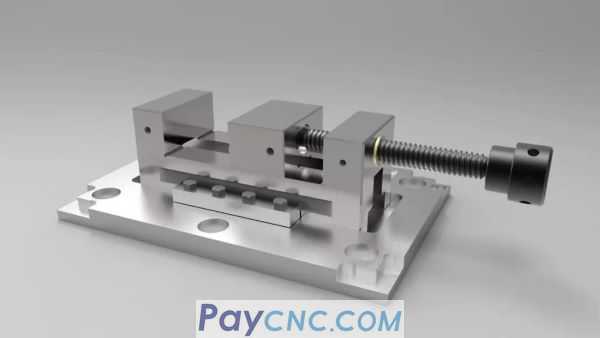

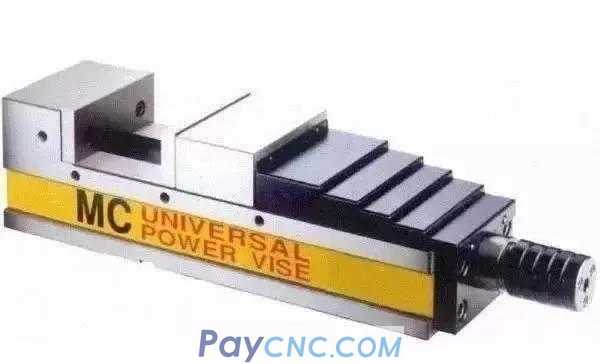

Fifth place: Vise; with his brother Max
For workpieces that cannot be pressed by the pressing plate, consider using a vise/max for clamping.

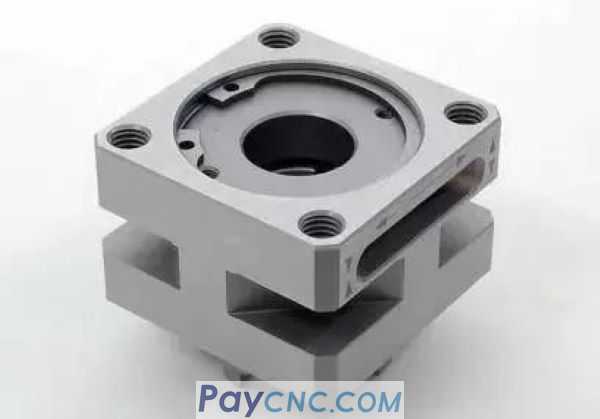

Fourth place: EROWA fixture
It can guarantee the repeat positioning accuracy of /-0.002mm. The electrode will not work without it; the four-axis machining will not work without it; the five-axis machining will not work even without it.

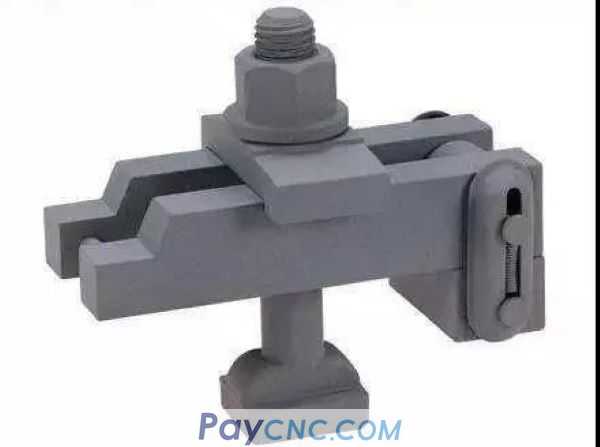

Third place: the combination of T block, screw, pressure plate and nut
Your other fixtures do not have the combination of T-block, screw, pressure plate and nut, it is difficult to install it on the machine tool (for milling machines, machining centers). If you don't believe it, just try it.

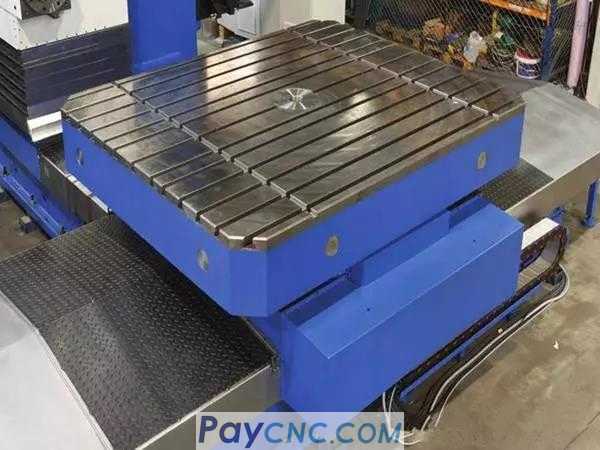

Second place: T-shaped workbench
Don't look at him usually inconspicuous. If you find that your machine does not have a T-type table, you will be at a loss.

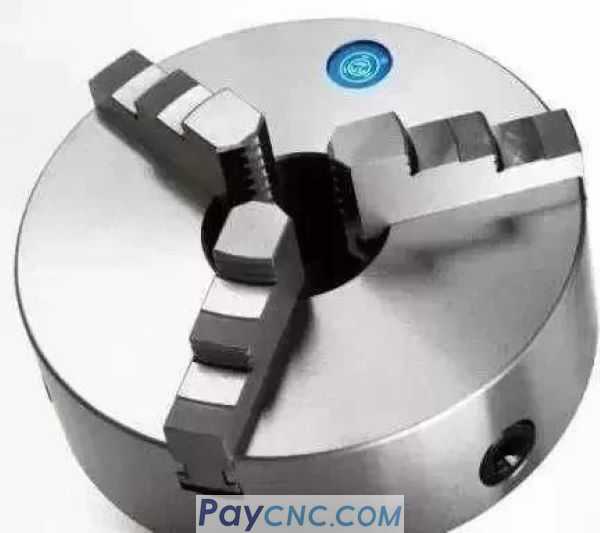

First place: chuck
The century-old fixture is still busy in the mechanical workshop. Its classic degree is self-evident. There are more chucks than lathes in the workshop. If there is no chuck, the lathe will not work.
These are the ten most commonly used fixtures. See you later, but you need to know! !
