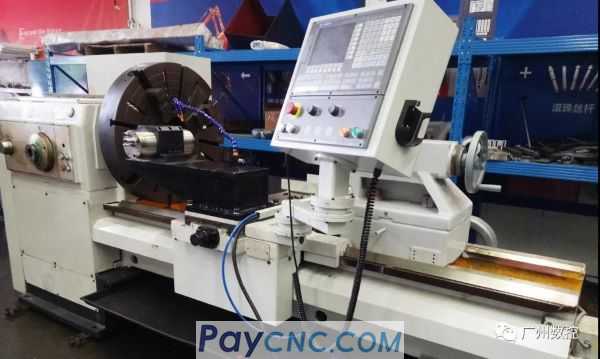

Universal lathe C6180x1500 is retrofitted with GSK980TDi
The outer circumference of the mold is divided into milling grooves, and the milling angle needs to be adjusted;

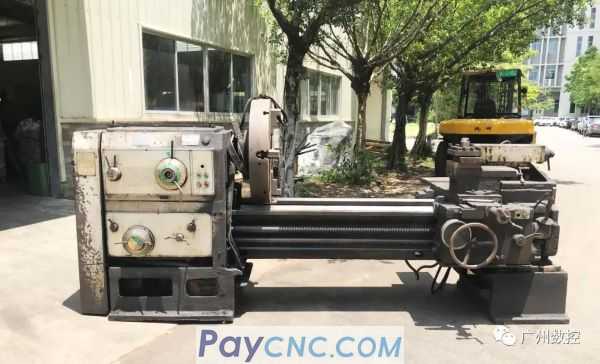

Using the old machine C6180*1500 general vehicle to carry out numerical control transformation.
solution
The machine tool grinding rail is coated with a plastic scraper to restore geometric accuracy;
X/Z axis modified ball screw feed mechanism;
The spindle is replaced with a servo motor, a reducer is added, and the timing belt is directly coupled with the main shaft;
Add electric spindle, make bracket and adjust with manual angle;
Configure the GSK980TDi CNC system.
Application effect
Meet customer workpiece processing needs;
It replaces the original imported vertical car processing, which greatly saves the equipment use cost.
