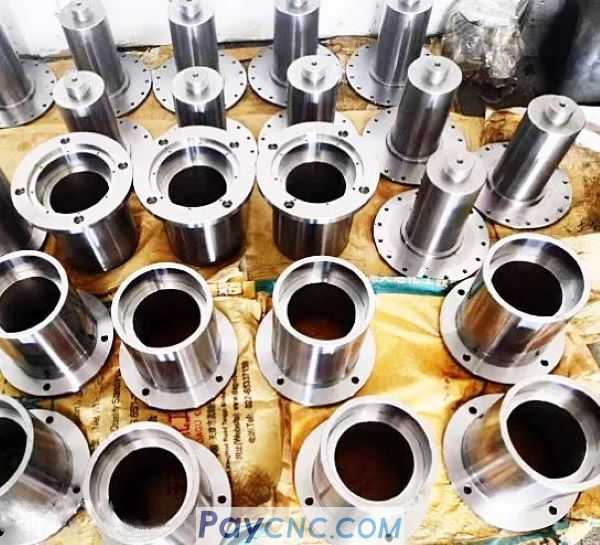

The machining accuracy of shape and position tolerance can be guaranteed within 0.02mm, and the machining accuracy of bearing position can be guaranteed within 0.01mm;

The surface finish of the shape and position requires 1.6, and the bearing position is 0.8.









solution

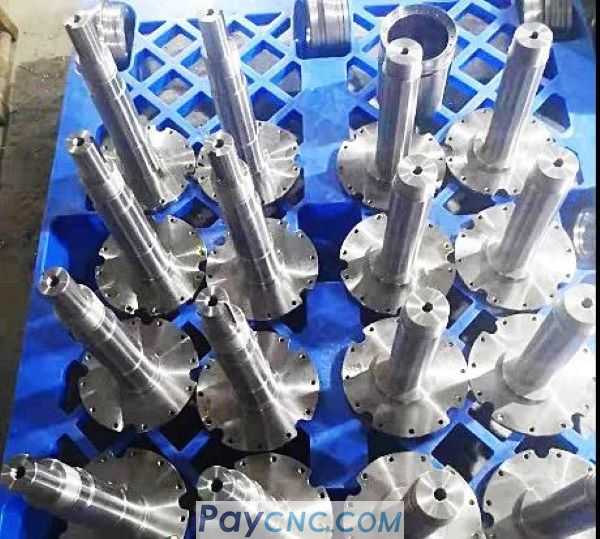

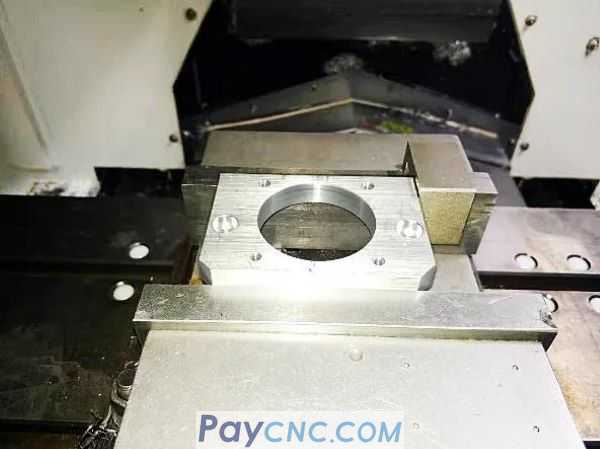

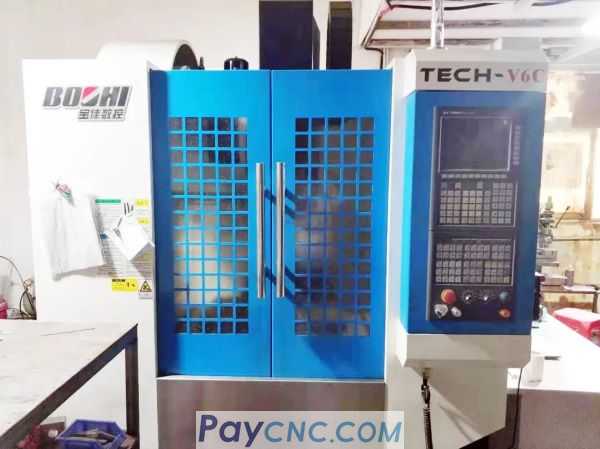

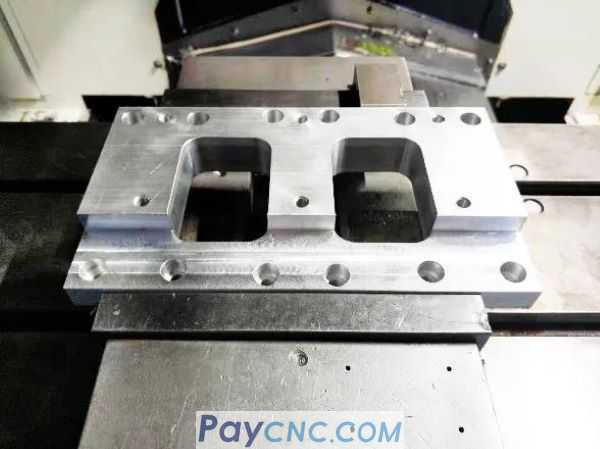

Use Baojia V6c machine tool with GSK 25iMb-V system machining center to process automatic equipment and mechanical parts;
Most of the workpiece materials processed by customers are soft materials, and the tools are made of ordinary alloy tools and the remaining 0.1-0.15mm is left after roughing. Direct finishing can be completed in one time, which improves efficiency;
The tapping is generally M6 metric. Use a center drill to drill the hole. After the 5mm drill bit makes the hole, the M6 tap completes the tap.






  Application effect

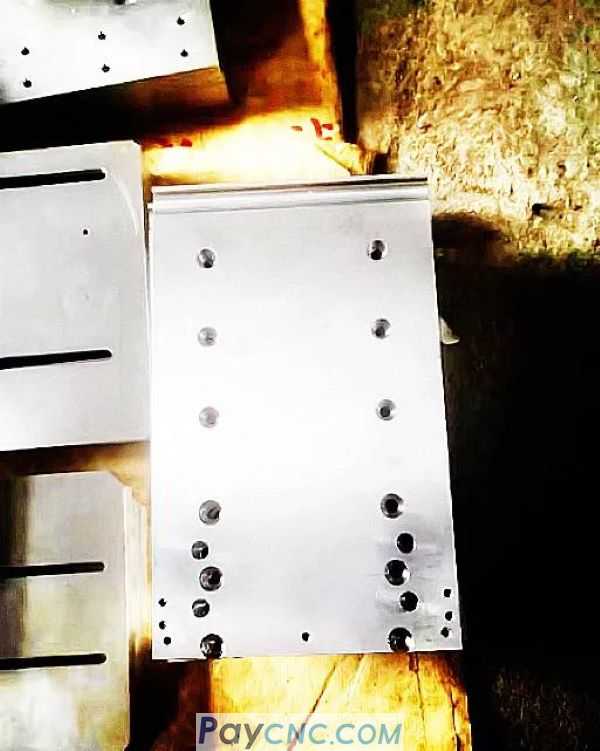

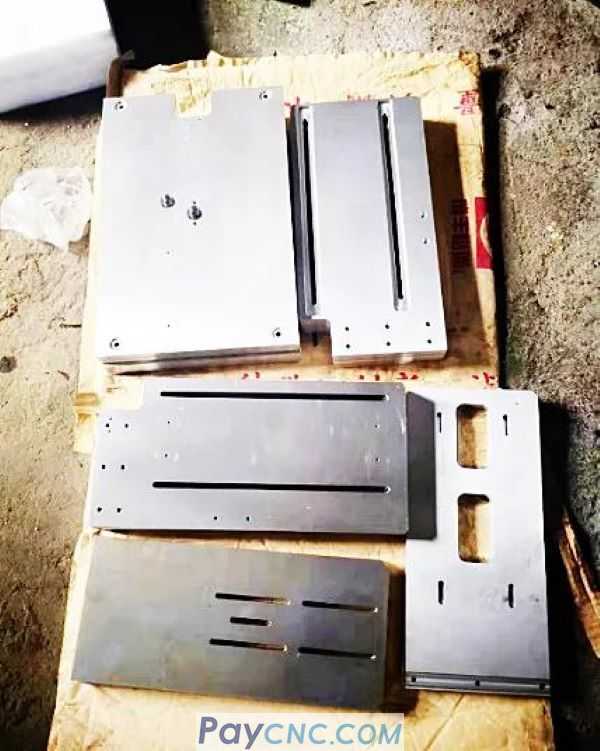

After processing various shape and position workpieces, the accuracy of drilling and tapping is tested to meet customer requirements.
