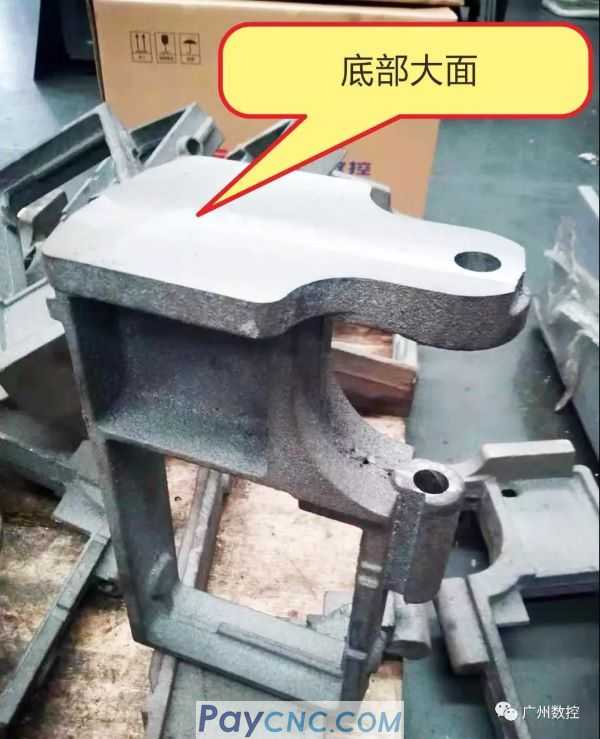

Machining garment button binding machine main cast iron parts, horizontal and vertical interrupted hole concentricity pass inspection rods easily pass, stop gauge rods can not be inserted; two sets of hole axis vertical, vertical holes vertical platform and bottom surface, deviation Within 0.5 degrees;
After the wide-scale factory debugging and processing is stable, the machine tool can be transported back to normal production.



solution
The processing is processed by the machining center of the GINO 25CMM system using the Xinnuo VMC850L machine.
According to the customer's parts, develop a clamping tooling plan, manufacture and process fixtures, and formulate processing strategies;
Recommend and use reliable machining tools;
The 4th axis multi-azimuth machining is adopted to avoid multi-directional positioning and clamping error.

Application effect

Qualified according to the size of the drawings, pass and stop inspection;

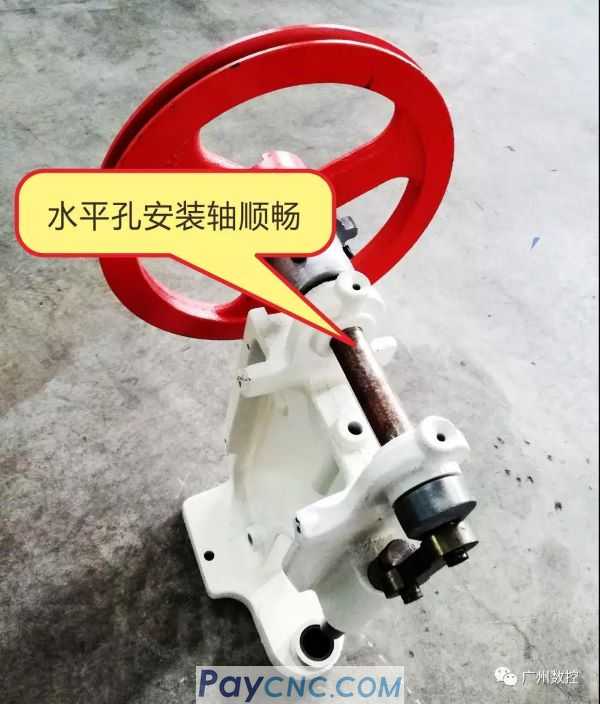

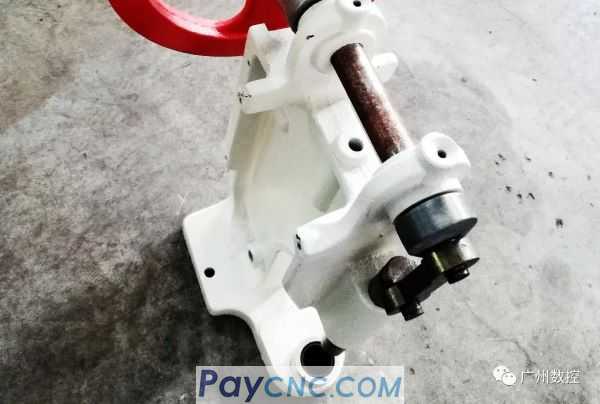

After the assembled parts are assembled, they run normally and smoothly;

Using a fully sealed machine tool, the on-site 5S is effectively controlled compared to the use of special machine processing;

Two different parts can be debugged in time and can be mass produced.
