GSK 980TDi Turning CNC Controller with ethernet function
Production lead time: 25 days

GSK980TDi CNC User Manual Download (Size: 9.7MB)


GSK980TDi TURNING MACHINE CNC PRODUCT BRIEF
GSK980TDi is a new member of the GSK980TD series product, which is developed by the original engineers who have studied the GSK980TD, GSK980TDa, GSK980TDb and GSK980TDc, etc. products, as well it is the newest product followed with the GSK980TDc, which GSK aims at the common CNC Turning machine and Turning center market.
GSK980TDi is based upon the GSK-Link industry spot BUS, which is adapted with the BUS servo drive unit and multi-core 23-bit absolute encoder servo motor, carries out the 0.1μm level position accuracy, servo parameter on-line configuration and non-block mechanical zero return. Simultaneously, invite the known professionals in the industry field to design the newest appearance. Additionally, the project team has been carried out a large number of studies in the efficiency improve, intelligence application, humanization operation and user secondary development, etc.
The launch of the GSK980TDi will lead another significant revolution in the common CNC system!

Technical features

Based on GSK-Link industrial field bus.

Least command increment: 0.1μm, maximum traverse rate: 100m/min.

Support turning and milling.

Support torque control .

Support servo parameter online configuration,  servo status real-time monitoring.

Support display interface secondary development (User-defined).

Support non-stop mechanical zero return.

Standard bus servo drive unit and multi-turn 17-bit absolute encoder.



High speed & high precision control
Based on GSK-Link industrial fieldbus,servo motors equipped with GR-L series servo devices and 25-bit or higher high-resolution absolute encoders can achieve nano-level interpolation.so that the output accuracy of the system matches the feedback accuracy of the servo motor encoder, giving full play to the performance of high-resolution encoder servo motors,thus achieving high-speed, high-precision processing results.

Oscillating chip break
During the roughing process, a certain frequency of sine/cosine wave interference is applied to the feed axis to cause the tool to oscillate in the direction of the cutting track, breaking the continuous chips into pieces and avoiding the chips from winding around the tool or the workpiece, thus causing the tool to break or the workpiece to deviate from the center of rotation during the machining process.

Support turning, milling and drilling complex machining
The system has 5 feed axes and 2 analog spindles. When the servo spindle is adapted, spindle orientation, rigid tapping, cylindrical interpolation, and polar coordinate interpolation can be realized to meet the requirements of turning and milling.

Backstage editing
During the program processing, other different programs can be edited,fully using of system resources,rational planning of time,and improving the efficiency of operation of the machine.

Graphical simulation
During the program processing, the workpiece entity is used as a model to simulate the real processing scene of the workpiece, and the tool path is more intuitive and easier to check the programming errors.


Manual MST function
Users can start MST commands in the position screen in manual/MPG mode, which reduces page switching and makes the operation more centralized and easy for users to quickly operate the machine



Torque control
The torque control function controls the motor to rotate at a certain rate, with a certain moment as the termination condition of the rotary motion. When the motor reaches the required torque, the current torque is maintained, so that the motor achieves dynamic balance with the external force in the rotation direction, which can be used for work piece docking and tailstock control between spindles.

Thread repair function
The thread repair function allows the machine to repair damaged threads (large oil pipelines or screw) regardless of whether the machine tool is equipped with a servo spindle or an analog spindle.

Polygon turning

For traditional polygon processing, power milling tools are usually used for processing. For occasions where high precision is not required the polygon turning function can be used to accelerate the processing of various polygons by the offset angle before synchronizing the workpiece axis with the main control axis and changing the speed ratio of the workpiece axis and the tool axis.

Machine tool fault diagnosis
The machine tool diagnostic function visually visualizes the input and output signals of the machine tool on the machine structure drawing, making the fault display of the machine tool more  intuitive and convenient for troubleshooting machine problems.

Application case
GSK980TDi applied in Brake Pad Machining

Special type: Brake pad processing machine

Application effect

Driving linear and rotary axes with a general servo drive;

The grinding wheel is machined with end faces instead of the side of the common grinding wheel;

Complete tasks with dedicated instructions

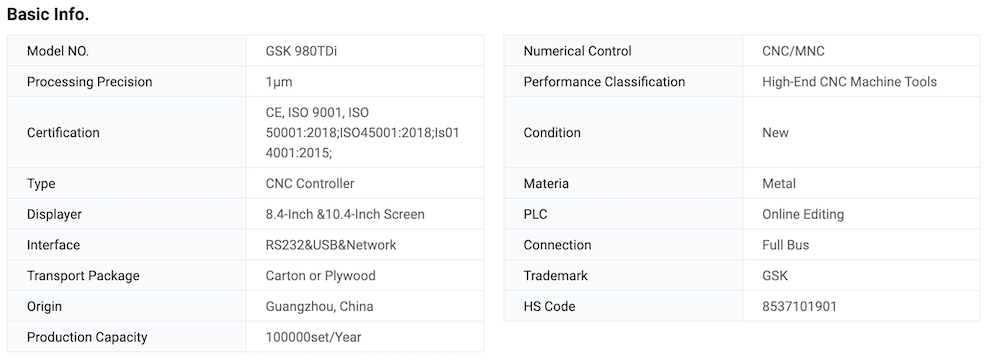

Technical specification
