GSK 980TDc is an upgraded product of GSK 980TDb. It adopts 8.4 "color LCD, supports online monitoring of ladder diagram, and adds online machine tool debugging wizard, teaching, auxiliary programming, polygon turning and other functions.Standard with GS2000T-N series strong overload servo unit and 5000 line encoder servo motor, to achieve μ level position accuracy, support I/O unit expansion, can meet the universal CNC lathes and special machine applications.
Technical characteristics
○MDI multi program segment execution;○The adaptive servo spindle can realize spindle orientation, rigid tapping, cylindrical interpolation and polar coordinates
○40m program storage space, 10000 part programs, supporting U disk program processing;
○Built in PLC, ladder diagram online display, real-time monitoring, expandable serial I / 0 unit;
○8. 4-inch true color LCD, supporting Chinese, English, Russian and other multilingual displays
○5 feed axes and 2 analog spindles;It has the functions of hand pulse trial cutting, teaching and hand pulse interruption;
○The minimum control accuracy is 0.1um and the maximum moving speed is 60m / min;
○It has the functions of on-line machine tool debugging wizard, auxiliary programming, interface customization, direct graphic size input, polygon turning, etc;
○GS2000T-N series strong overload servo unit is equipped as standard, and 5000 line encoder is used for servo motor position feedback;











Technical parameter |
|||
Item |
Specification |
||
Number of control axes |
Max number of control axes: 5 axes |
||
Max number of linkage axes: 5 axes (linear interpolation), 2 axes (circular interpolation) |
|||
Number of PLC control axes: 5 axes |
|||
|
Workpiece coordinate system (G50), local coordinate system, workpiece coordinate system 1~6 (G54~G59) |
||
Coordinate plane selection |
|||
Position command range: ±99999999 x min input unit |
|||
Absolute/incremental programming, diameter/radius programming, inch/metric conversion, linear axis/rotary axis |
|||
G Function |
Contains 69 G commands, including rapid positioning, linear interpolation, circular interpolation, cylindrical interpolation, thread cutting, polar coordinate interpolation, polygon turning, rigid tapping, pause, drilling, tool compensation, macro program calling, Jump, loop, tilt axis control, thread repair, etc. |
||
Feed Function |
Rapid speed: Class μ (IS-B) 0mm/min ~ 60000mm/min 0.1μ (IS-C) 0mm/min ~ 24000mm/min |
||
Rapid magnification: F0, 25%, 50%, 100% a total of four levels of real-time adjustment |
|||
Cutting feed speed: Class μ (IS-B) 0mm/min ~ 30000mm/min 0.1μ (IS-C) 0mm/min ~ 24000mm/min |
|||
Feed magnification: 0~150% a total of sixteen levels of real-time adjustment |
|||
Rapid/cutting feed acceleration and deceleration: linear type and S type. The starting speed, ending speed and acceleration and deceleration time of acceleration and deceleration are set by parameters. |
|||
Thread Cutting |
Thread type: equal pitch straight thread taper thread / end thread / arc thread, variable pitch straight thread / taper thread / end thread and other tip width variable lead thread |
||
Thread head: 1-99 |
|||
Thread pitch: 0.01mm ~ 1000mm (metric thread) or 0.06tooth/inch ~ 2540 tooth/inch (British thread) |
|||
Thread cutting acceleration and deceleration: linear, exponential, S type can be set |
|||
Thread backtail: backlength, angle and speed characteristics can be set |
|||
Spindle Function |
Spindle speed: It can be given by the S code or the PLC signal, with a speed range of 0 ~ 9999rpm |
||
Spindle override: 50%~120%, a total of eight levels, real-time adjustment |
|||
2 channels 0V~10V analog voltage output, support flexible tapping/rigid tapping |
|||
2 channels of spindle encoder feedback, the number of spindle encoder lines can be set |
|||
Tool function |
Tool length compensation (tool offset): 32 groups |
||
Tool wear compensation: 32 groups |
|||
Tool life management: 32 groups (8 tools/group) |
|||
Tool nose radius compensation (C type) |
|||
Tool setting methods: fixed-point tool setting, trial cutting tool setting, reference point return to tool setting, automatic tool setting, coordinate recording function |
|||
Tool offset execution mode: modify coordinate mode, tool movement mode |
|||
M function |
Special M codes (M 00, M 01, M 02, M 30, M 98, M 99), other M codes are defined by PLC |
||
PLC function |
13 basic instructions, 27 functional instructions |
||
PLC program online display and real-time monitoring; support PLC warning and PLC alarm |
|||
Support multiple PLC programs, the currently running PLC program can be selected |
|||
Basic I/O: 980TDc: 41 input / 36 output; 980TDc-H: 61 input / 44 output |
|||
Scalable serial I/O unit (optional):IOA-01T:24 points input 16 points output,4 analog voltage output IOA-02T:40 points input 24 points output,8 analog voltage output 4 analog voltage input |
|||
Program storage and editing |
Program capacity: 40M, 10,000 programs (including subprograms and macro programs) |
||
Editing mode: full screen editing |
|||
Editing function: program/program segment/word retrieval, modification, deletion, copy, paste |
|||
MDI allows input and operation of 10 blocks |
|||
Support macro program/subprogram call, allowing 4-fold subprogram nesting |
|||
Calculator |
|||
Auxiliary programming |
|||
Program check function |
Track preview, graphics simulation, dry run, machine lock, auxiliary function lock, single-segment run, stored stroke detection |
||
Simplified programming functions |
Canned cycle, multiple canned cycle, rigid tapping, direct input of drawing size, automatic chamfering, sentence-style macro programming |
||
Compensation function |
Backlash compensation: 0mm~2mm (or 0inch~0.2inch), the backlash compensation method and frequency are set by parameters |
||
Memory type pitch error compensation: 1024 compensation points in total, parameter setting of compensation points for each axis |
|||
HMI |
8.4 inches LCD |
||
Support Chinese, English and other languages display |
|||
The processing track display, the processing track can be zoomed in and out in real time, and the font of the program content can be zoomed in or out |
|||
Position, program, tool compensation, alarm, parameter, setting, graphics, diagnosis, ladder diagram, help |
|||
Operation Management |
Operation mode: edit, automatic, input, mechanical zero return, MPG/single step, manual, program zero return, MPG trial cutack |
||
6-level operation authority management |
|||
A max of 32 time-limited shutdowns can be set |
|||
Program switch, parameter switch |
|||
MPG interruption, teaching |
|||
Machine function debugging, machine fault diagnosis |
|||
Regular maintenance function |
|||
Communication function |
USB: U disk file operation, U disk file direct processing, support PLC program, system software U disk upgrade |
||
RS 232: two-way transmission of part programs, parameters and other files, screw compensation parameters import and export, support PLC program update |
|||
security function |
Emergency stop, hardware travel limit, software travel check, data backup and recovery |
||
Electrical Interface |
5 control axes (including axis C), 2 analog voltage outputs, 1 encoder feedback input, 1 electronic handwheel input (supporting handheld electronic handwheel, 980tdc-h supporting 2 handwheel), 1 RS 232, 1 USB-H, 41 input / 36 output (980tdc-h: 61 input / 44 output) |
||
Size |

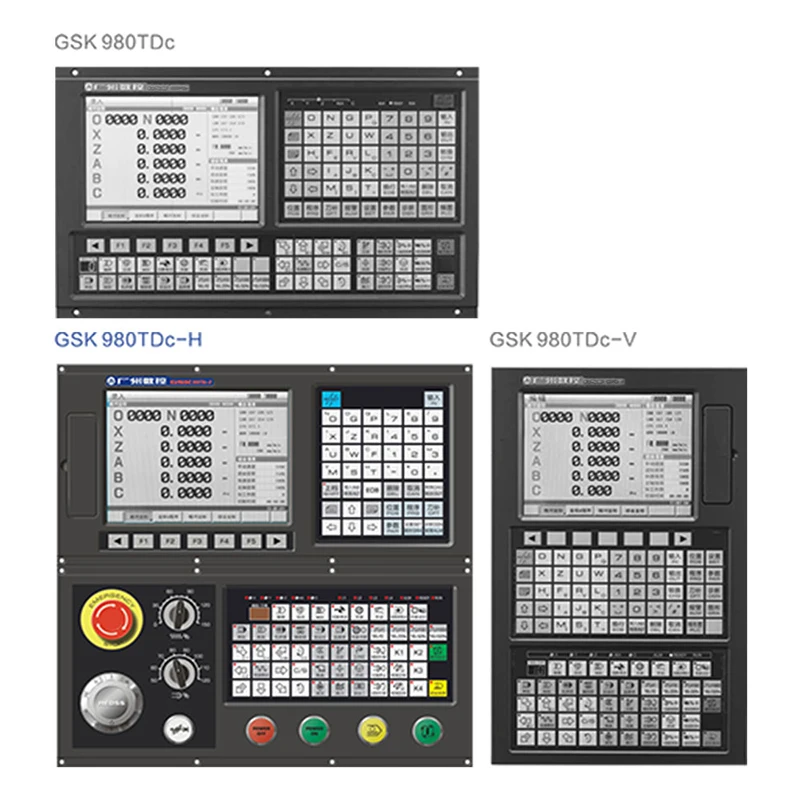

GSK980TDc(W×H×D)420×260×150mm |
||
GSK980TDc-V(W×H×D)260×420×150mmm |
|||
GSK980TDc-B(W×H×D) |
445×345×182mmmm |
||
GSK980TDc-H(W×H×D) |
(host)400×200×130mm |
MPU03AT(Operation panel with handwheel) 400×200×135mm |
|
MPU03BT(Operation panel without handwheel) 400×200×135mm |
◆ 5 feed axes, 2 analog spindles
◆ minimum control accuracy 0.1 μ m. Maximum moving speed 60m / min
◆ gs2000t-n series strong overload servo unit is equipped as standard, and 5000 line encoder is used for servo motor position feedback
◆ adaptive servo spindle can realize spindle orientation, rigid tapping, cylindrical interpolation and polar coordinate interpolation
◆ built in PLC, ladder diagram online display, real-time monitoring, expandable serial I / O unit
◆ it has the functions of hand pulse trial cutting, teaching and hand pulse interruption
◆ it has the functions of on-line machine tool debugging wizard, auxiliary programming, interface customization, direct graphic size input, polygon turning, etc
◆ MDI multi segment execution
◆ 40m program storage space, 10000 part programs, supporting U disk program processing
◆ level 6 operation authority management, 32 time limited shutdown settings
◆ 8.4-inch true color LCD, supporting Chinese, English, Russian and other multilingual displays
