GSK25iMc-H Machining Center CNC Controller
Production lead time: 45 days




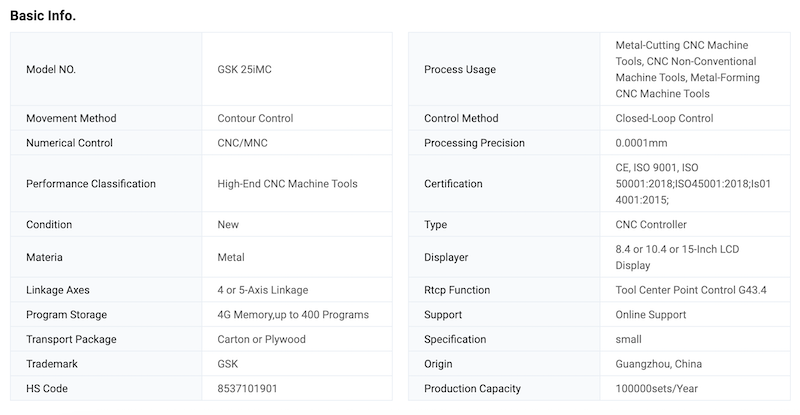

Product Description

Product Description

GSK 25i is a new generation of high-performance and high-reliability CNC system developed through continuous innovation and improvement. It integrates cutting-edge technologies in the field of CNC today, with powerful functions, convenient operation and wide application range.

GSK 25i boasts the new-generation CNC controller, faster data processing speed, higher system stability, stronger control functions, multi-axis linkage, bus control, high speed, high precision and absolute encoder.



Achievements of National Science and Technology Major Project of China

This series of products have been widely used in automobile manufacturing, energy, power, hardware mold, 3C and other industries, providing efficient and accurate motion control and process solutions for various industries.


Adaptive control of feed rate for 5-axisside edge machining


Pitch compensation

*Load the REN file selected for the corresponding axis with one key to quickly complete the pitch compensation parameter setting and pitch compensation data writing;

*The user can carry out one-key incremental loading according to the actual demand to achieve the effect of correction and compensation;

*Realize zero operation of pitch compensation parameters and data, completely avoid data errors or careless mistakes caused by manual setting, and strictly control the accuracy of data.


5-Axis machining with RTCP(optional)
8-axis and 5-linkage, supporting various types of five-axis machine tool structures, suitable for the processing of multi-axis parts such as aeroengine, steam turbine blade and mold, with the functions of five-axis RTCP (tool center point control), inclined plane (3+2 positioning), five-axis tool path fairing, adaptive control of feed rate for five-axis side edge processing, five­axis hand pulse insertion, to meet customers'requirements for various multi axis processing functions and processing quality.

Technical features

Axis control function	Specification
Axis control function
Maximum number ofcontrol axes	8 feed axes plus 2 servo spindles
Number of linkage axes	4-axis linkage
	5-axis linkage
Number of controlled PLC axes	Up to 8 axes
Synchronous controlof feed axis	Up to 4 groups
Closed loop control	Support incremental, absolute encoder or grating ruler
Minimum instruction unit	Minimum instruction unit IS-B	0.001mm	0.0001inch	0.001°
	Minimum instruction unit IS-C	0.0001mm	0.00001inch	0.0001°
Minimum detection unit	Minimum instruction unit IS-B	0.001mm	0.0001inch	0.001°
	Minimum instruction unit IS-C	0.0001mm	0.00001inch	0.0001°
Maximum instruction value	+999999.9999mm+99999.9999inch+999999.9999°
Maximum feed speed	Maximum feed speed 200m/min
Automatic accelerationand deceleration	Linear before interpolation, S-curve acceleration/deceleration, jerk control
High-speed and high-precision machining	G05 high-speed small line segment look-ahead interpolation, path smoothing, and up to 1000 look-ahead and read-ahead segments
5-axis control function(optional)
RTCP function	Tool center point control G43.4
Inclined surface machining	Five-axis positioning (3+2) machining G68.2
Five-axis manual feed	Manual feed in tool axis, right angle direction of tool axis and rotation direction of tool center point

Programming function
Program format	ISO instruction standard, program name: 0+4 digits, segment number N+5 digits, G+3 digits,coordinate value lP  6 digits before the decimal point, coordinate value lP : 4 after the decimapoint, S+5 digits, T+3 digits, M +3 digits, F+6 digits before the decimal point and F+4 digits after thedecimal point
Interpolation function	48 groups of basic coordinate system G52-G59 and additional extended coordinate system (G54.1)
Workpiece coordinate system	48 groups of basic coordinate system G52-G59 and additional extended coordinate system (G54.1)
Tool compensation	C tool compensation function. 400 sets of tool compensation
Programming function	There are more than 100 G instructions in total, including 12 common fixed cycles, 19 special fixedcycles and compound cycles, face milling, coordinate system rotation, scaling, mirroring, automatictool length measurement, tool center point control, and inclined surface machining commands. Thenumber of subroutine calls is 4, and the user macro program is type B
Program storage	4G Memory,up to 400 programs
Reference point function	G27 returns to reference point to check: G28 returns to reference point; G29 returns from the reference point; G30 returns to reference points 2, 3 and 4
Skip function	G31 skip function for tool and workpiece measurement
Programmable control function	Programmable stroke limit (G22 and G23), programmable data input (G10)
